Wall Mount Cabinet Enclosures
Installation zone RECOMMENDATION1
1
1
1

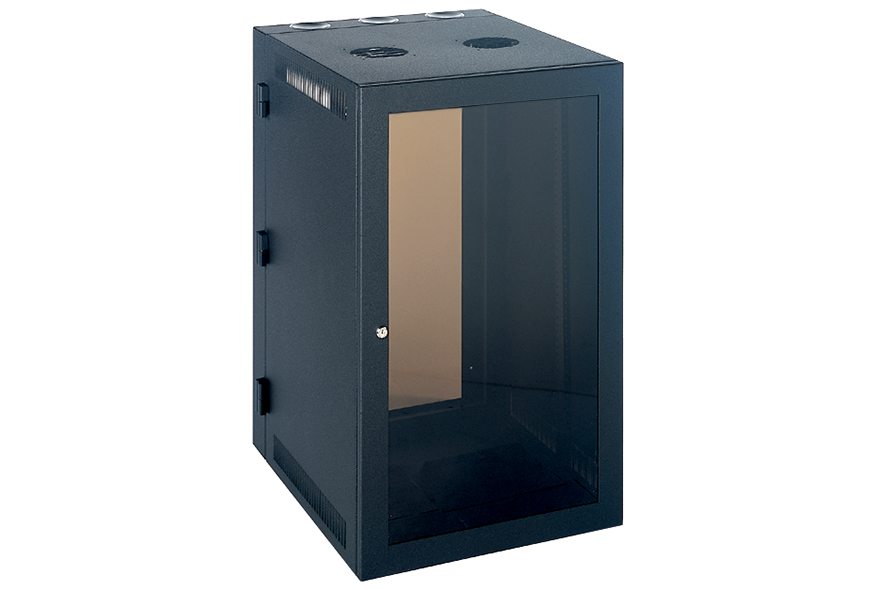

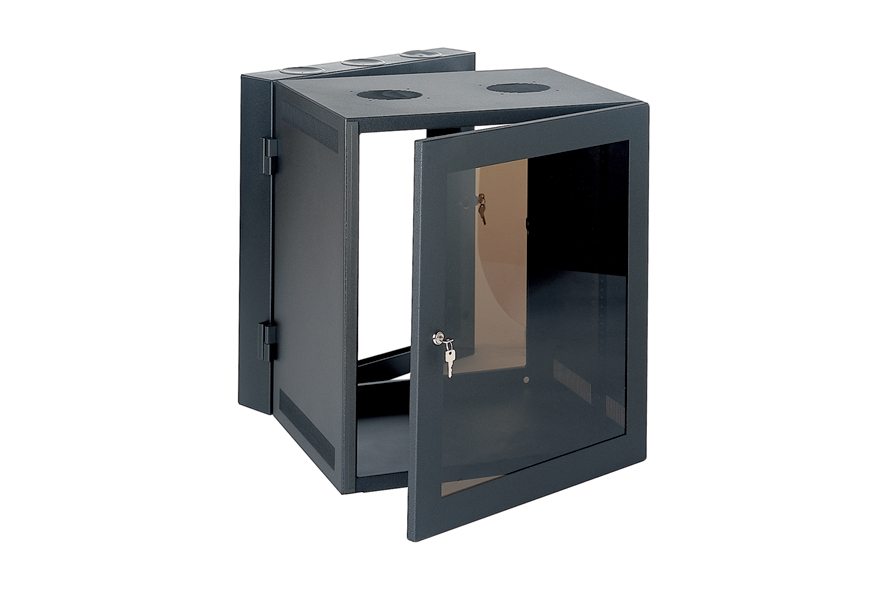

When networks need added security for wall mounted applications, OCC offers wall mount cabinet enclosures. The OCC Wall mount Enclosures feature a locking smoked Plexiglas™ or steel front door, two adjustable shelf mounting rails and a locking rear swing frame with heavy-duty quick-release hinges for easy wall mounting and fast access to the rear of installed equipment.
Features
- Removable doors
- Two adjustable shelf mounting rails
- Disassembles for easy mounting
- Solid steel or locking smoked Plexiglas™ doors available
- Vented sides and top
- Ample cable entry and exit
- Accepts fan tray kits
Specifications
| Download Drawing | ||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | Description | Dimensions | Load Rating | RU | Ship Weight | DWG/ZIP | ||
| WC818 | Wall mount cabinet, black | 15"H x 21"W x 16"D | 125 lbs** | 8 | 37 lbs | Download | Download | |
| WC828 | Wall mount cabinet, black | 15"H x 21"W x 20"D | 125 lbs** | 8 | 40 lbs | Download | Download | |
| WC1218 | Wall mount cabinet, black | 24"H x 21"W x 16"D | 125 lbs** | 12 | 50 lbs | Download | Download | |
| WC1228 | Wall mount cabinet, black | 24"H x 21"W x 20"D | 125 lbs** | 12 | 58 lbs | Download | Download | |
| WC1238 | Wall mount cabinet, black | 24"H x 21"W x 24"D | 125 lbs** | 12 | 60 lbs | Download | Download | |
| WC1828 | Wall mount cabinet, black | 36"H x 21"W x 20"D | 125 lbs** | 18 | 65 lbs | Download | Download | |
| WC1838 | Wall mount cabinet, black | 36"H x 21"W x 24"D | 125 lbs** | 18 | 65 lbs | Download | Download | |
Instruction Sheets
Related Documents
- Broadcast Solutions
- Industrial Solutions Quick Reference Product Guide
- Passive Optical LAN (POL) Ordering Guide
Please Login Here to access additional documents.
