Surface Mount Enclosures
Installation zone RECOMMENDATION1
1
1
1

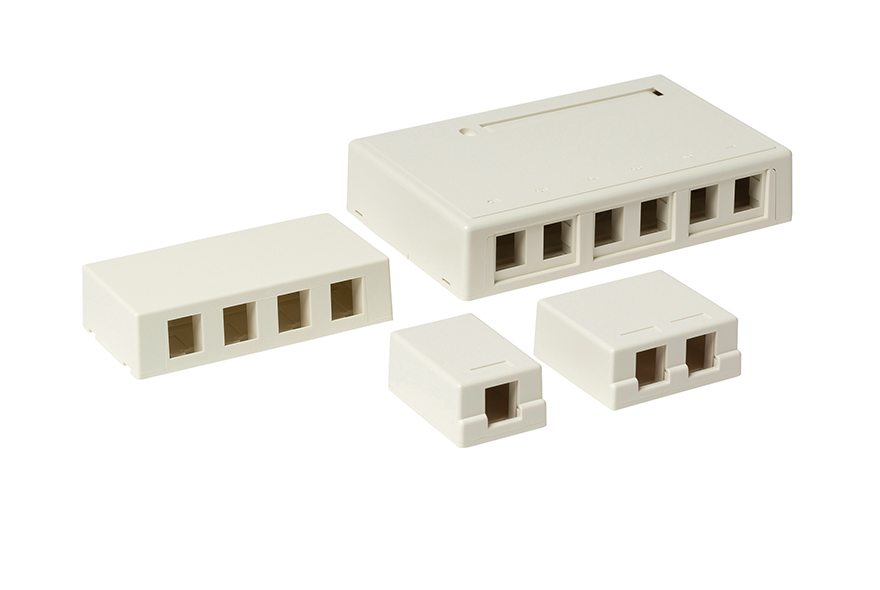

OCC's Surface Mount Enclosures are a low-profile, workstation solution that offers flexibility for multiple network configurations. In addition, the Surface Mount Enclosures are a cost effective approach for multiple desktop applications including cubicle settings and numerous workstation complexes.
Features
- Available for UMJ- or KMJ-style jacks and adapters
- Knockouts on three sides as well as in the base for easy cable entry
- Port designation included along with blank port covers
- Designation windows
- Mounting screws, double-sided tape and cable ties included
Specifications
| Download Drawing(s) | ||||
|---|---|---|---|---|
| Part Number | Description | DWG/ZIP | ||
| SME2xx | Surface mount enclosure, UMJ, 2-port | Download | Download | |
| SME4xx | Surface mount enclosure, UMJ, 4-port | Download | Download | |
| SME8xx | Surface mount enclosure, UMJ, slimline, 8-port | Download | Download | |
| SME10xx | Surface mount enclosure, UMJ, slimline, 10-port | Download | Download | |
| SMEK1xx | Surface mount enclosure, KMJ, 1-port | Download | Download | |
| SMEK2xx | Surface mount enclosure, KMJ, 2-port | Download | Download | |
| SMEK4xx | Surface mount enclosure, KMJ, 4-port | Download | Download | |
| SMEK6xx | Surface mount enclosure, KMJ, 6-port | Download | Download | |
* Replace "xx" with color choice: 00 = electrical ivory, 01 = office white, 07 = white (SME UMJ style only),or 12 = bright white
