Pierside Hermaphroditic Fiber Optic Connector (6 CH)

Installation zone RECOMMENDATION

OCC’s Pierside family of fiber optic connectors is designed to meet the stringent Pierside performance specifications (NAVSEA 737971 performance and 7379172) and is an ideal connector system for much more than ship-to-shore communications. The Pierside connector provides a genderless mating system perfect for applications requiring high performance in single-mode, multimode or composite configurations in extreme environments. In addition, this connector is an excellent choice for other applications including broadcast, mining, land tactical, control systems, and more.

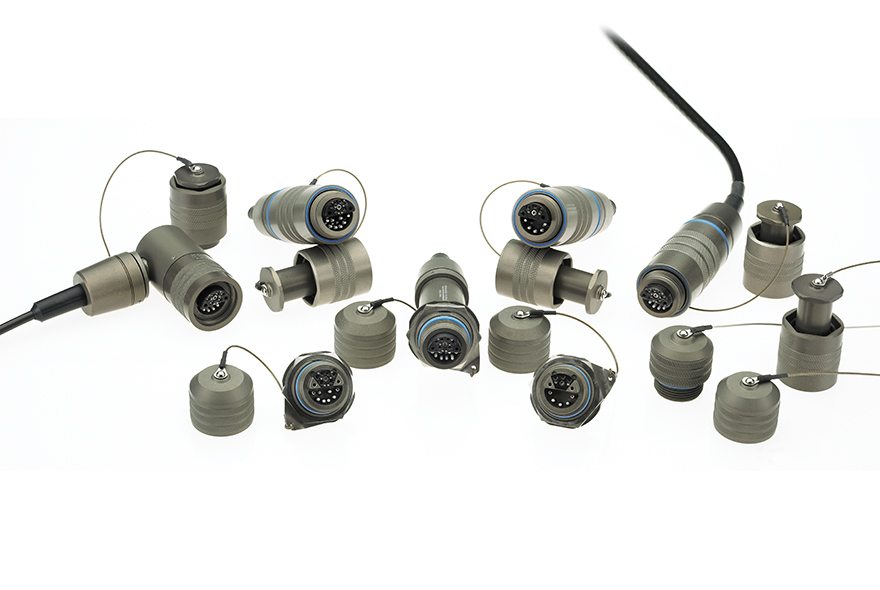

The OCC Pierside family of fiber optic connectors affords users the most comprehensive complement of connector options available, including replacement dust caps, strain-relief receptacles and 90° plugs, etc. Available in either single-mode, multimode or a combination of both, the design is compliant to the Commercial Item Description (CID) standard issued by the Naval Sea Command.

Applications

Ship-to-Shore Communications Umbilical Connect
Mobile Emergency Telecommunications Stations
Mobile Tactical Shelters
U.S. Army, Navy, and Marine Corps Military Tactical Deployments
Broadcast
Oil and Gas Industries

Features

Easy and managable installations. The Pierside connector provides a true hermaphroditic design, allowing this connector to mate plug-to-plug or plug-to-receptacle. This allows for flexibility and quick fiber system deployments when multiple units are daisy-chained together. As one of the only manufacturers providing a true hermaphroditic dust cap as a standard, OCC's Pierside is capable of mating without regard for male or female gender of the interfacing connector.
Standards compliant. Available in single-mode, multimode or a combination of both, Pierside is compliant with the Commercial Item Description (CID) standard issued by the Naval Sea Command.
Comprehensive options for a variety of uses. OCC’s Pierside affords the most comprehensive complement of options available, including hermaphroditic or standard dust caps, strain-relief receptacles, 90° plugs and more. The interchangeable Detachable Socket Insert (DSI) and termini enable users to replace components as needed. Pierside is interoperable with other connectors complying to the same standard and features a hermaphroditic dust cap as a standard provision.

Standards

Performance Specifications
Performance	Specification	Parameter
Insertion loss (multimode)	TIA/EIA-455-171	0.30dB – typical, 0.75dB – maximum
Insertion loss (single-mode)	TIA/EIA-455-171	0.40dB – typical, 0.75dB – maximum
Back reflection (single-mode UPC polish)	EIA/TIA-455-60	-50dB – typical, -40dB – maximum
Operating temperature	TIA/EIA-455-5	-54° C to + 85° C
Storage temperature	TIA/EIA-455-5	-65° C to + 85° C
Temperature cycling	TIA/EIA-455-3	-54° C to + 85° C
Mating durability	TIA/EIA-455-21	1000 cycles
Impact	TIA/EIA-455-2	Method B , omit wall pipe
Twist	TIA-455-36	±90° rotation, 1 cycle/5 sec., 1000 cycles
Cable sealing flex	MIL-STD-1344, method 2017	100 cycles
Cable retention	EIA/TIA-455-6	400 lbs. min.
Crush resistance	EIA-455-26	450 lbs.
Physical shock	EIA/TIA-455-14	Condition C
Vibration	MIL-STD-1344	Method 2005.1
Temperature humidity	TIA/EIA-455-5C	Method B
Fluid immersion	EIA/TIA-455-12	24 hours per fluid
Water pressure		25 PSI, 24 hours
Ozone exposure	ATSM-D-1149	100-150 PPM for 2 hours
Flammability	MIL-STD-1344	Method 1012
Corrosion resistance	EIA/TIA-455-16	500 hours salt spray
Thermal shock	TIA/EIA-455-71	Condition B-0 except 10 cycles @ 85℃ and -62℃

Specifications

Part Number	Description	Type

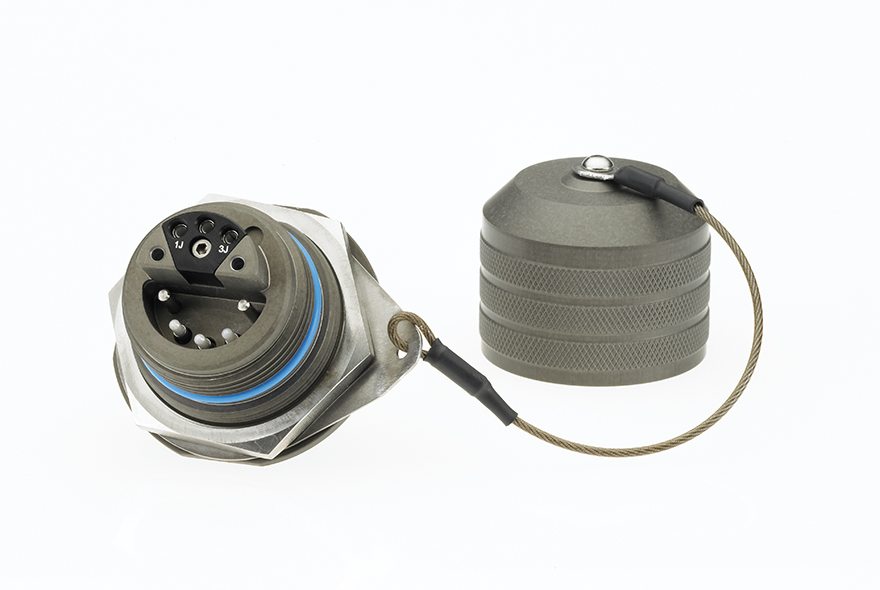

CCPC22C11C	6 CH jam nut receptacle, external jam nut with female dust cap	Recpt., jam nut, external
CCPA10C11Cx	6 CH plug, hermaphroditic, with hermaphroditic dust Cap	Plug, with dust cap
CCPF22C11Cx	6 CH jam nut, strain-relief receptacle, external jam nut with female dust cap	Strain-relief receptacle
CCPH0WF11C	Replacement detachable socket insert - DSI (wedge), 3 - ceramic alignment sleeves	Accessory
CCPH0WF11C	Replacement detachable socket insert - DSI (wedge), 6 - ceramic alignment sleeves	Accessory

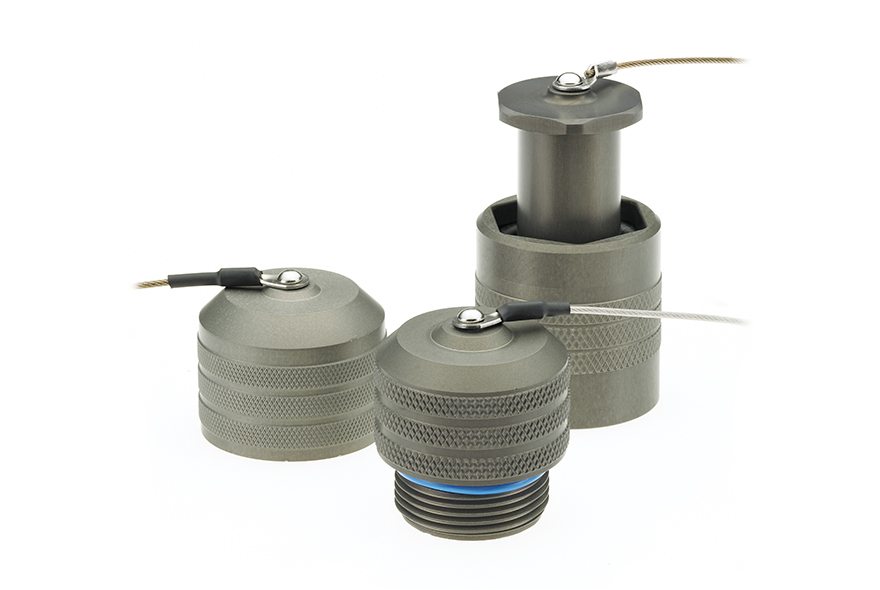

CCPH10F100	Replacement dust cap, hermaphroditic, 6 CH or 12 CH	Dust cap
CCPH20F100	Replacement dust cap, female, 6 CH or 12 CH	Dust cap
CCPH0WF11C	Replacement dust cap, male, 6 CH or 12 CH	Dust cap

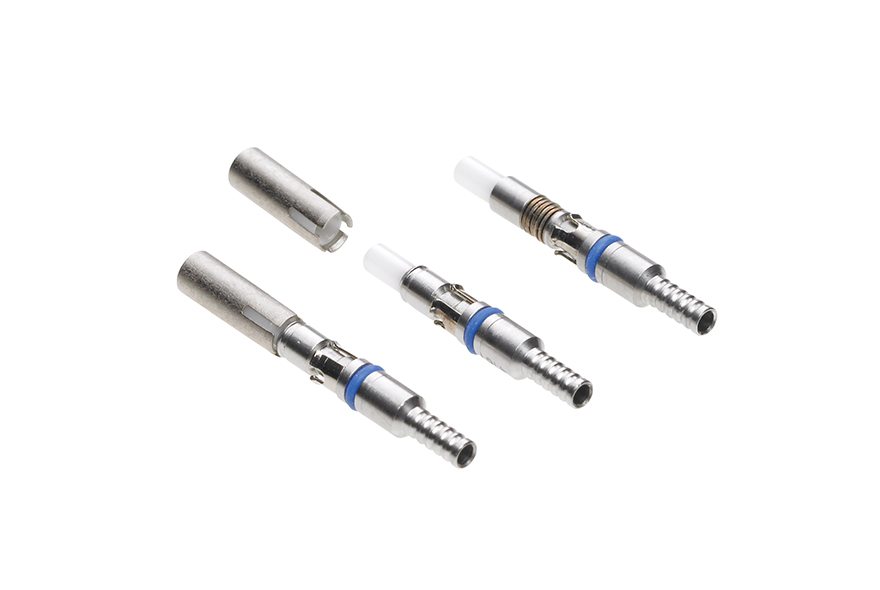

TC1440CA	COTS M29504/14 pin 2.00mm ceramic ferrule, 126µm I.D.	Termini
TC1541CA	COTS M29504/15 socket, 2.00mm ceramic ferrule, 126 µm I.D.	Termini
TC0339AA	Dummy termini (fits either pin or socket)	Termini
TC1546AA	Replacement captivator guide bushing for DSI	Accessory
PA35395-99-017	Crimp sleeve, brass, 0.114" O.D.	Crimp sleeve

Replace "x" with Diameter Code Configuration
A	0.190"-0.239"
B	0.240"-0.279"
C	0.280"-0.315"
D	0.316"-0.346"
E	0.347"-0.379"
F	0.380"-0.423"
G	0.424"-0.465"
H	0.466"-0.515"
K	0.550"-0.589"
