MARS® T-Frame
Installation zone RECOMMENDATION1
1
1
1

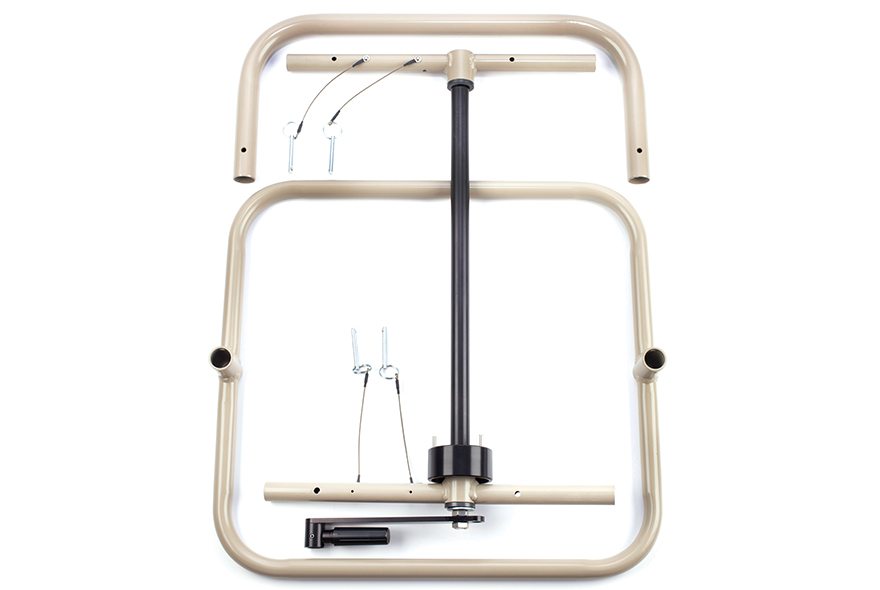

- Design allows for disassembly into five components for easy shipping and storage

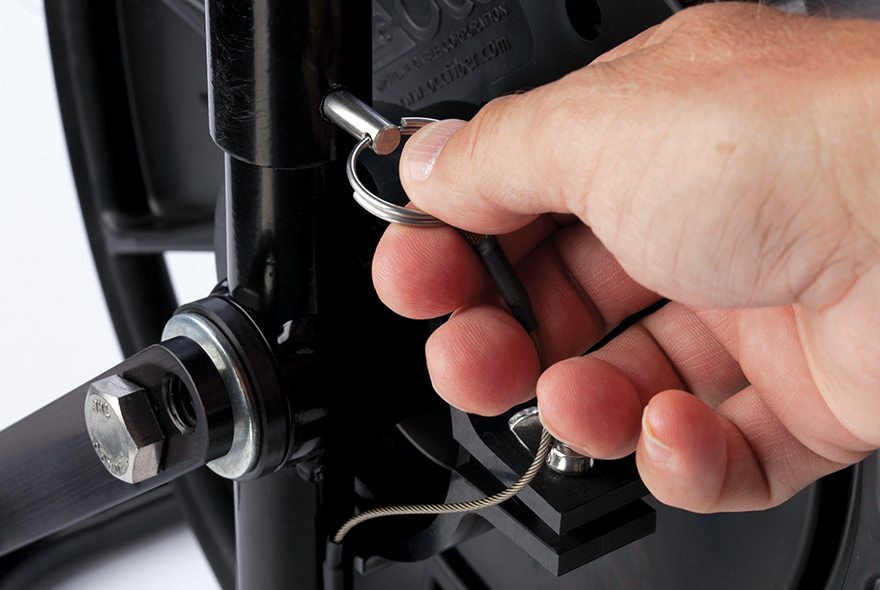

- Pin latches are tethered to base and lock into place
- Integrated brake adjusts the drag applied to the reel. Prevents overspin
- Integrated crank handle allows easy acquisition of cable
- The axle on the AAR base can also be used for reel storage or deployment
- Curved upper handle bar allows for easy management and deployment
Features
- Mobile Emergency Telecommunications Stations
- Mobile Tactical Shelters
- United States Army, Navy, and Marine Corps Military Tactical Deployments
- Broadcast
- Emergency Restoration and Deployable Communications
Specifications
| Download Drawing(s) | ||||
|---|---|---|---|---|
| Part Number | Description | DWG/ZIP | ||
| ABF-0750-Y | T-frame with brake, for 750M reel | n/a | n/a | |
| ABF-1000-Y | T-frame with brake for 1000M reel | n/a | n/a | |
| ARA-0750-Y | T-frame without brake for 750M reel | n/a | n/a | |
| ARA-1000-Y | T-frame without brake for 1000M reel | n/a | n/a | |
Replace "Y" with color code: B = black, G = green, T = desert tan.
