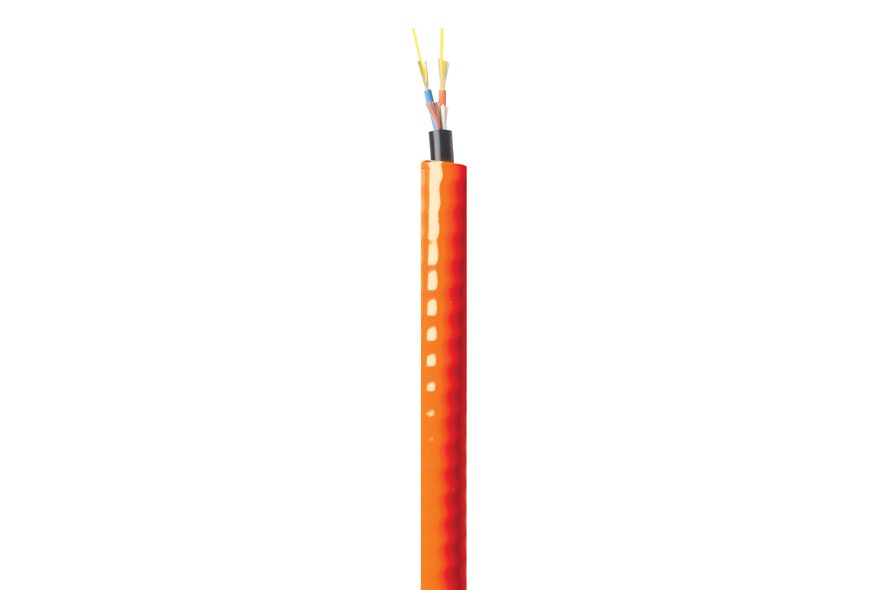

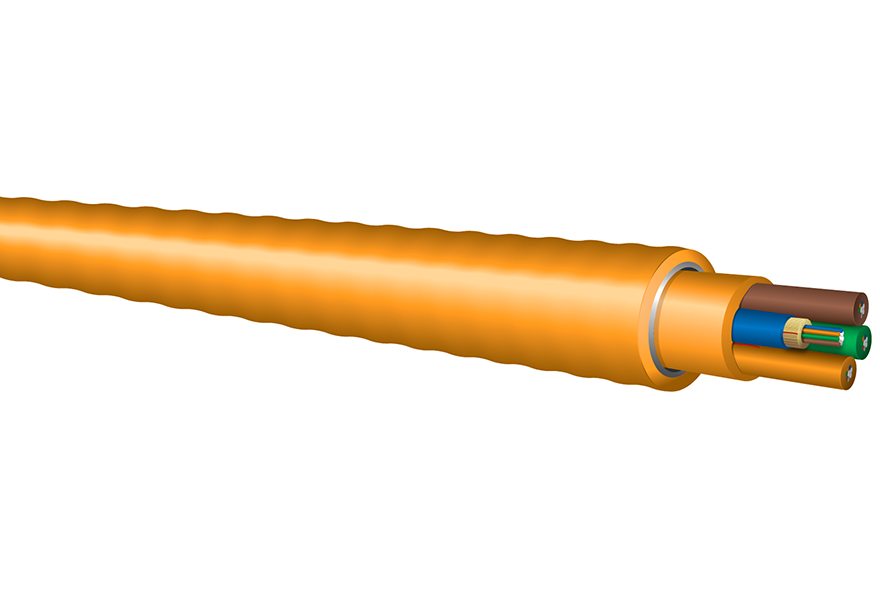

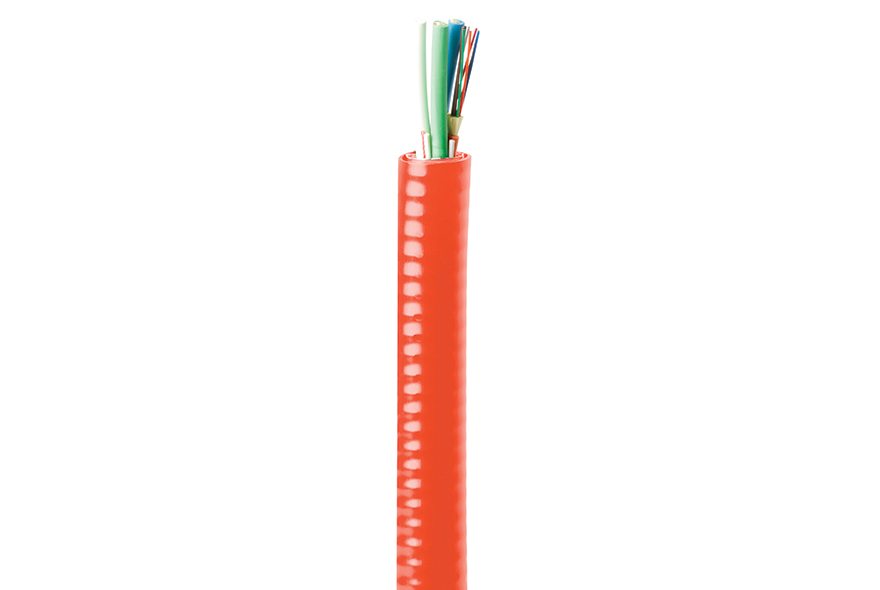

G-Series Subgrouping – Interlocking Armor (ILA) Plenum Rated Cables

Installation zone RECOMMENDATION
1
1
1
1
  • Ideal for industrial and other installations requiring a metallic conduit
  • Interlocking armor may eliminate the need for conduit, reducing installation costs

Features

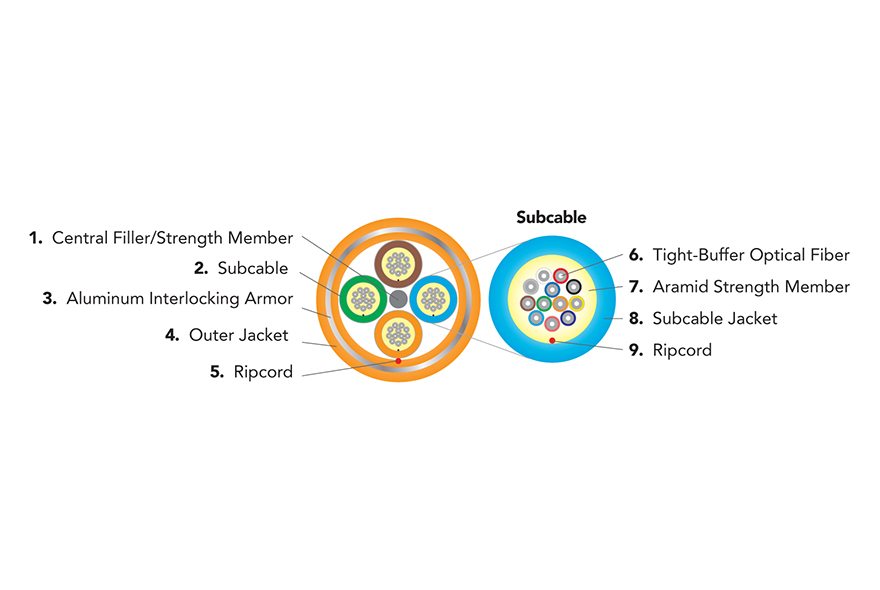

  • Inner cable is a fully functional G-Series Subgrouping – Plenum Rated Cable
  • Cable materials are Indoor/Outdoor – UL-listed OFCP and UV, water and fungus resistant
  • UL listed in accordance with NEC section 770.179(a) for use in ducts, plenums and air-handling spaces
  • Aluminum interlocking armor with a fluoropolymer (K) overjacket
  • Greater flexibility than standard corrugated steel-armored (CST) cables
  • Wide operating temperature of -40°C to +85°C (K jacket)

Characteristics

Characteristic 6 Fiber Subunits 12 Fiber Subunits
Operating Temp -40°C to +85°C -40°C to +85°C
Storage Temp -40°C to +85°C -40°C to +85°C
Install Temp 0°C to 60°C 0°C to 60°C
Flame Retardancy UL listed type OFCP (ANSI/NFPA 262) and FT6 (CSA C22.2 No.232) UL listed type OFCP (ANSI/NFPA 262) and FT6 (CSA C22.2 No.232)
Crush Resist 650 N/cm 650 N/cm
Impact Resist 20 impacts 20 impacts
Flex Resist 25 cycles 25 cycles
Jacket Type K K

Standards

OCC Indoor/Outdoor tight-buffered fiber optic cables meet the functional requirements of the following standards:

  • UL 1651
  • ANSI/NFPA 262
  • ICEA-S-83-596

Specifications

6-Fiber (4.5mm) Subcables

Tensile Load Minimum Bend Radius
Fiber Count Part Number Part Number Configurator Diameter mm
(in)		 Weight kg/km
(lbs/1,000ft)		 Installation N
(lbs)		 Operation N
(lbs)		 Installation cm
(in)		 Longer Term cm
(in)
12 GB012K***9*PI6 22.7
(0.89) 		504.0
(339.0) 		1,350
(300) 		400
(90) 		45.4
(17.9) 		34.1
(13.4)
18 GB018K***9*PI6 22.7
(0.89) 		502.0
(337.0) 		1,350
(300) 		400
(90) 		45.4
(17.9) 		34.1
(13.4)
24 GB024K***9*PI6 22.7
(0.89) 		500.0
(336.0) 		1,350
(300) 		400
(90) 		45.4
(17.9) 		34.1
(13.4)
30 GB030K***9*PI6 23.8
(0.94) 		550.0
(370.0) 		1,350
(300) 		400
(90) 		47.6
(18.7) 		35.7
(14.1)
36 GB036K***9*PI6 25.9
(1.02) 		538.0
(362.0) 		1,350
(300) 		400
(90) 		51.8
(20.4) 		38.9
(15.3)

12-Fiber (5.5mm) Subcables

Tensile Load Minimum Bend Radius
Fiber Count Part Number Part Number Configurator Diameter mm
(in)		 Weight kg/km
(lbs/1,000ft)		 Installation N
(lbs)		 Operation N
(lbs)		 Installation cm
(in)		 Longer Term cm
(in)
24 GX024K***9*PI6 23.8
(0.94) 		569.0
(382.0) 		1,350
(300) 		400
(90) 		47.6
(18.7) 		35.7
(14.1)
36 GX036K***9*PI6 23.8
(0.94) 		565.0
(380.0) 		1,350
(300) 		400
(90) 		47.6
(18.7) 		35.7
(14.1)
48 GX048K***9*PI6 23.8
(0.94) 		561.0
(377.0) 		1,350
(300) 		400
(90) 		47.6
(18.7) 		35.7
(14.1)
