Fiber Optic Jumpers

Enterprise Fiber Optic Cable Assemblies

Home / Products / Fiber / Fiber Optic Jumpers

Installation zone RECOMMENDATION

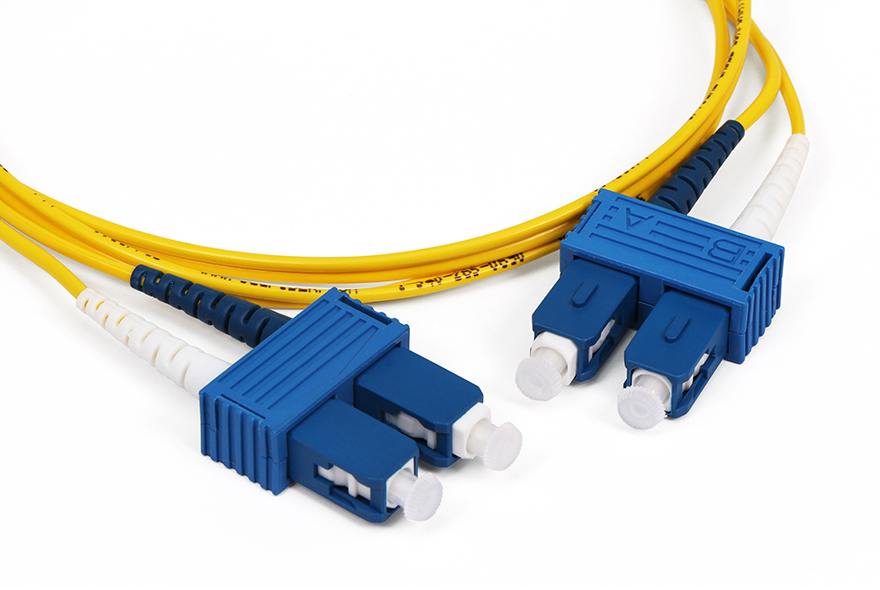

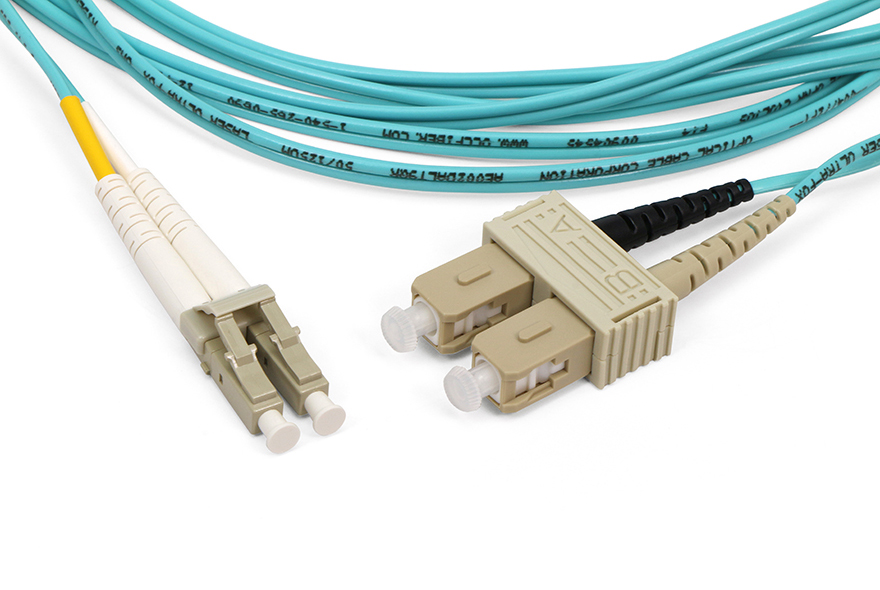

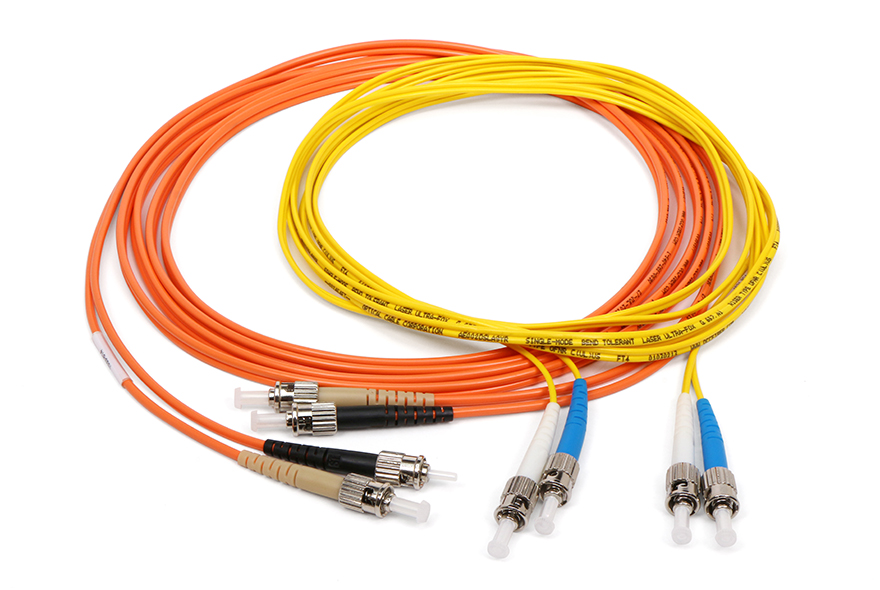

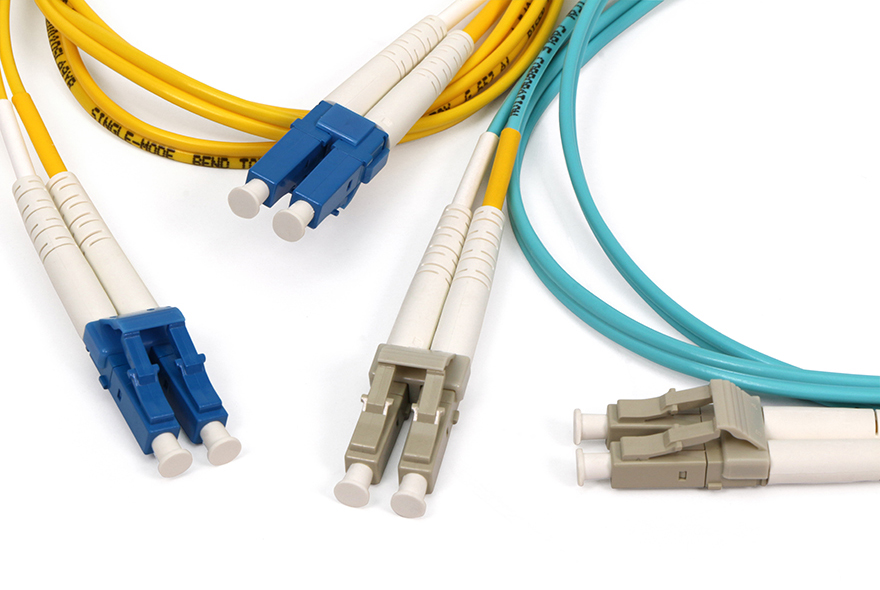

Get exactly the jumper you need to make the transition from cross-connect point to the electronics. With unmatched insertion loss and exceptional return loss, OCC’s full line of fiber jumpers ensures the right connection every time. Available in simplex and duplex, multimode 50/125, OM3, OM4, 62.5/125, or single-mode in a variety of connector types and lengths. The discrete connectors utilize ceramic ferrules. Listening to customers in the industry, OCC has standardized on the AE series 2.0mm fiber cable for any simplex or duplex jumper that has one or two LC’s attached. The AX series 3.0mm fiber is used for all other connector types. For 50/125 and 62.5/125 jumpers, our standard jacket color is orange. For OM3 and OM4, the standard jacket color is aqua. For single-mode jumpers, the standard jacket color is yellow.

Features

Automated polishing equipment
Multi-fiber distribution cables, single or dual ended terminations

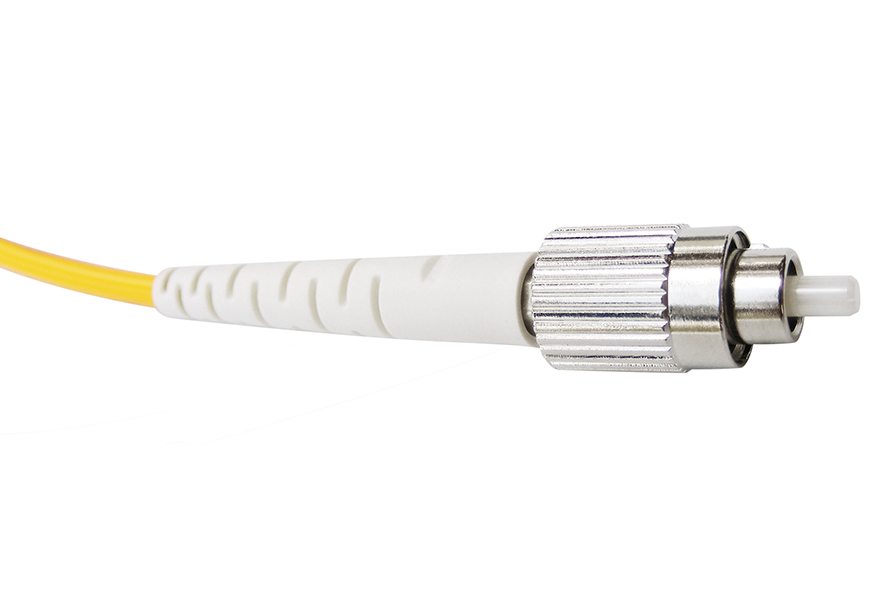

Discrete connectors utilizing ceramic ferrules
Custom jacket colors for security applications
Availability of any specified length
Standard riser rated cable with PC polish for multimode & single-mode (If UPC or APC polish or custom length is required, please call 1-800-622-7711
and ask for a Sales Representative. We're ready to assist you).

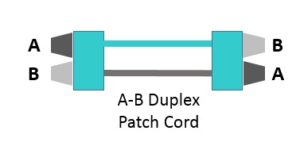

OCC’s standard wiring scheme for our fiber jumpers is shown below.

Specifications

		Download Drawing(s)
Part Number	Description	PDF	DWG/ZIP
See Ordering Guide Below		n/a	n/a

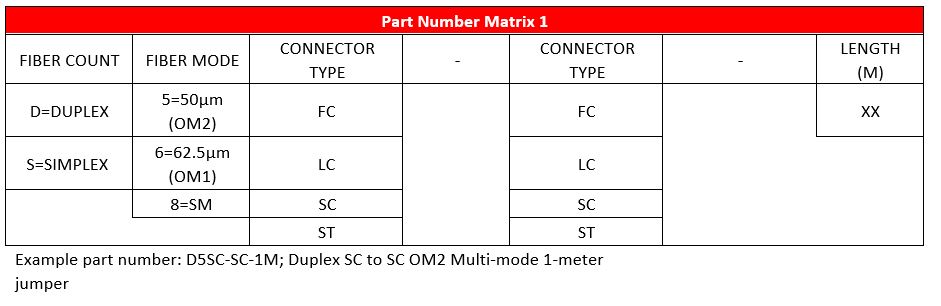

See Matrix-1	SM/MM (OM1/2) DUPLEX FC/SC/ST. AX-Series Cable with 2.9mm OD.	Download	Download
See Matrix-1	SM/MM (OM1/2) DUPLEX LC-to-FC/SC/ST. AE-Series Cable with 2.0mm OD.	Download	Download
See Matrix-1	SM/MM (OM1/2) SIMPLEX FC/SC/ST. AX-Series Cable with 2.9mm OD.	Download	Download
See Matrix-1	SM/MM (OM1/2) SIMPLEX LC-to-FC/SC/ST. AE-Series Cable with 2.0mm OD.	Download	Download

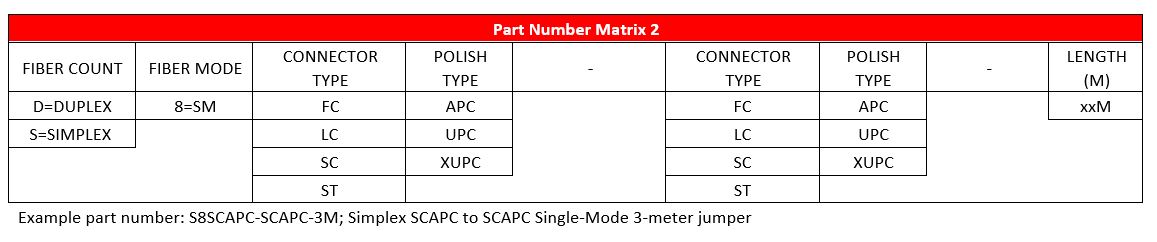

See Matrix-2	SM APC DUPLEX FC/SC/ST. AX-Series Cable with 2.9mm OD.	Download	Download
See Matrix-2	SM APC DUPLEX LC-to-FC/SC/ST. AE-Series Cable with 2.0mm OD.	Download	Download
See Matrix-2	SM APC SIMPLEX FC/SC/ST. AX-Series Cable with 2.9mm OD.	Download	Download
See Matrix-2	SM APC SIMPLEX LC-to-FC/SC/ST. AE-Series Cable with 2.0mm OD.	Download	Download

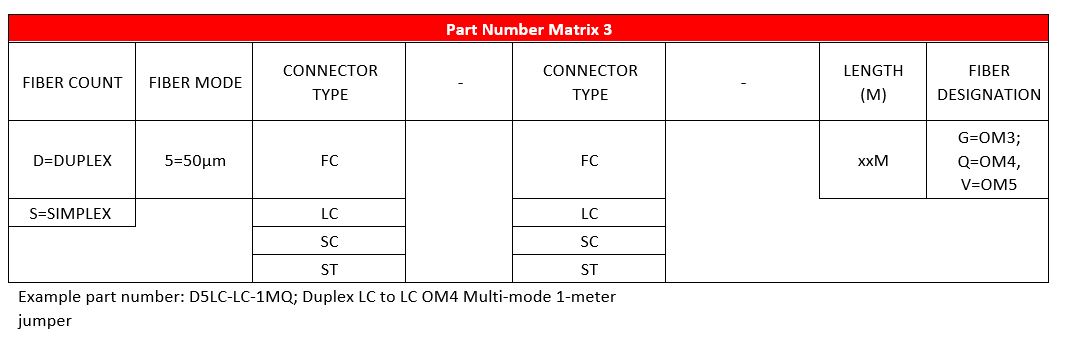

See Matrix-3	MM (OM3/4/5) DUPLEX FC/SC/ST. AX-Series Cable with 2.9mm OD.	Download	Download
See Matrix-3	MM (OM3/4/5) DUPLEX LC-to-FC/SC/ST. AE-Series Cable with 2.0mm OD.	Download	Download
See Matrix-3	MM (OM3/4/5) SIMPLEX FC/SC/ST. AX-Series Cable with 2.9mm OD.	Download	Download
See Matrix-3	MM (OM3/4/5) SIMPLEX LC-to-FC/SC/ST. AE-Series Cable with 2.0mm OD.	Download	Download

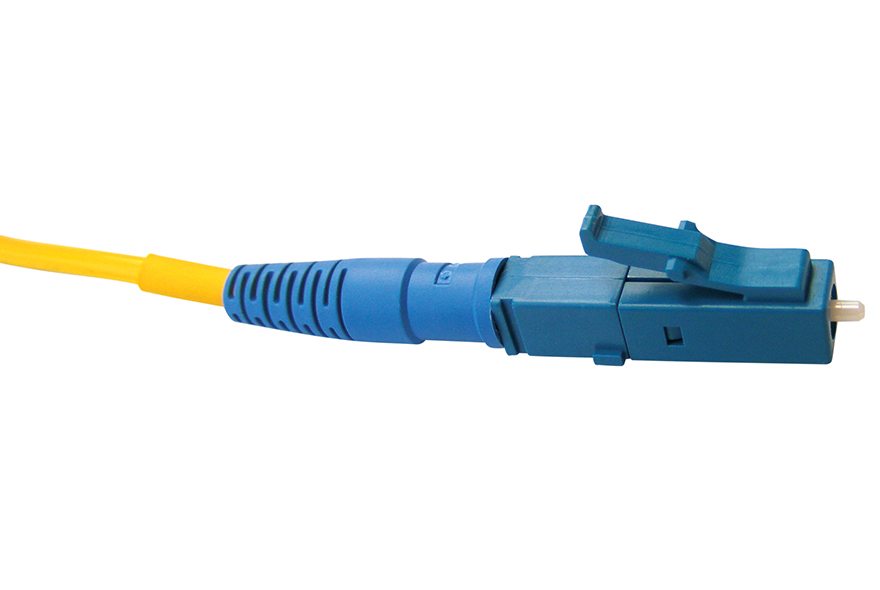

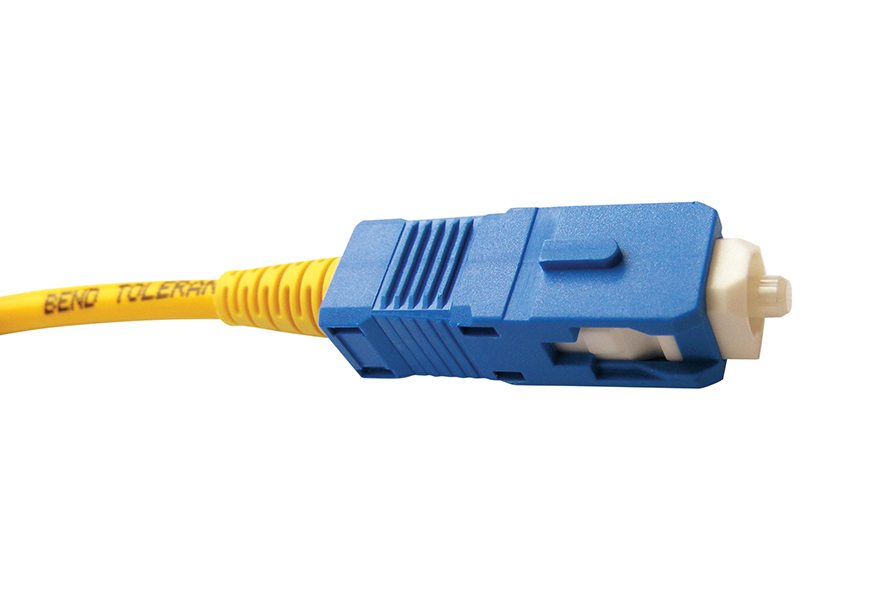

Fiber jumpers with LC connectors are constructed with AE-Series cable (2.0mm OD). Jumpers with other connector types are constructed with AX-Series cable (2.9mm OD)
