Installation zone RECOMMENDATION

Used in trunking, LAN and distribution applications where small size, lightweight, and versatile installation capability are required for ducts, plenums, and air handling spaces
Ideal configuration for a single termination point requiring multiple fibers
Indoor/Outdoor plenum cables eliminate the need for costly cable transitions in different installation environments

Used in trunking, LAN and distribution applications where small size, lightweight, and versatile installation capability are required for ducts, plenums, and air handling spaces
Ideal configuration for a single termination point requiring multiple fibers
Indoor/Outdoor plenum cables eliminate the need for costly cable transitions in different installation environments

UL Listed in accordance with NEC section 770.179(a) for use in ducts, plenums and air-handling spaces
Low-smoke PVC jacket

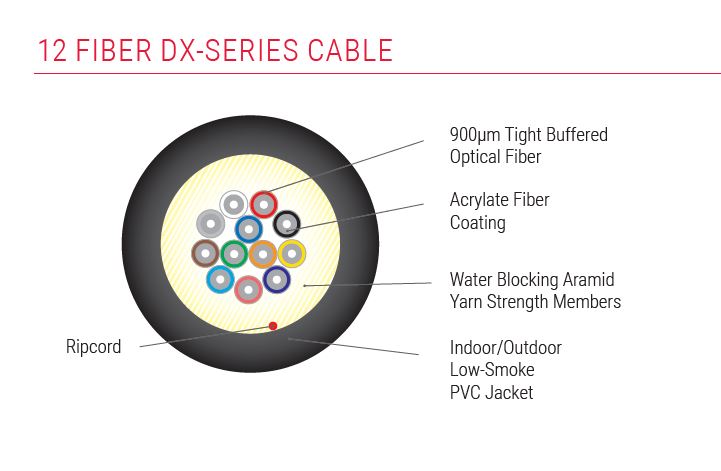

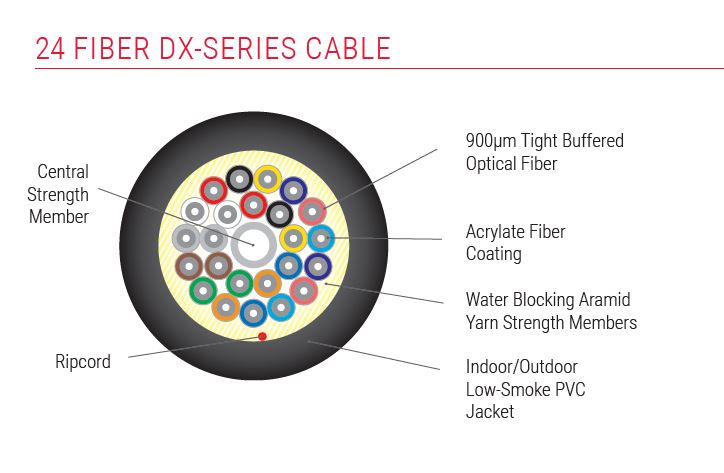

2 to 24 fibers
Cable materials are Indoor/Outdoor UL-Listed OFNP and also UV, water and fungus resistant
High performance tight-buffered coating on each fiber for environmental and mechanical protection
900 µm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices because connectors terminate directly to the fiber.
Helically stranded core for flexibility, survival in difficult installations, and mechanical protection for the fibers
High specific strength-to-weight ratio and compact cable design for limited conduit space and tight bends in long cable pulls
High crush resistance may eliminate the need for innerduct
Can be installed outside and in plenum or riser pathways inside, eliminating the need to transition cable types between environments
Interlocking armor can be applied to cables as an alternative to conduit installation

Characteristic	Plenum Indoor/Outdoor (K)
Operating Temp	-40°C to +70°C
Storage Temp	-40°C to +70°C
Install Temp	0°C to +60°C
Flame Retardancy	UL Listed Type OFNP NFPA262 FT6 (CSA C22.2 No. 232)
Crush Resist	1500 N/cm (TIA/EIA-455-41A)
Impact Resist	1000 impacts (EIA/TIA-455-25A)
Flex Resist	1000 cycles (TIA/EIA-455-104A)
Jacket Type	K

Optical Cable Corporation Indoor/Outdoor tight-buffered fiber optic cables meet the functional requirements of the following standards:

UL 1651
ANSI/NFPA 262
GR-409-CORE
ICEA-S-104-696
ICEA-S-83-596
TIA-568
TIA-598
UL-listed type OFNP in accordance with NEC sections 770-179 (A) and 770-154 (A) for use in ducts, plenums, and air-handling spaces. Meets or exceeds requirements for intra-building fiber optic cables as outlined in GR-409-CORE.
