DX-Series Distribution – MSHA-Rated Mining Cables

Installation zone RECOMMENDATION
1
1
1
1
  • Can be installed in locations that require compliance with MSHA’s Part 7, Subpart K of Title 30 of the Code of Federal Regulations (CFR) signal cables
  • Suitable for permanent installations

Features

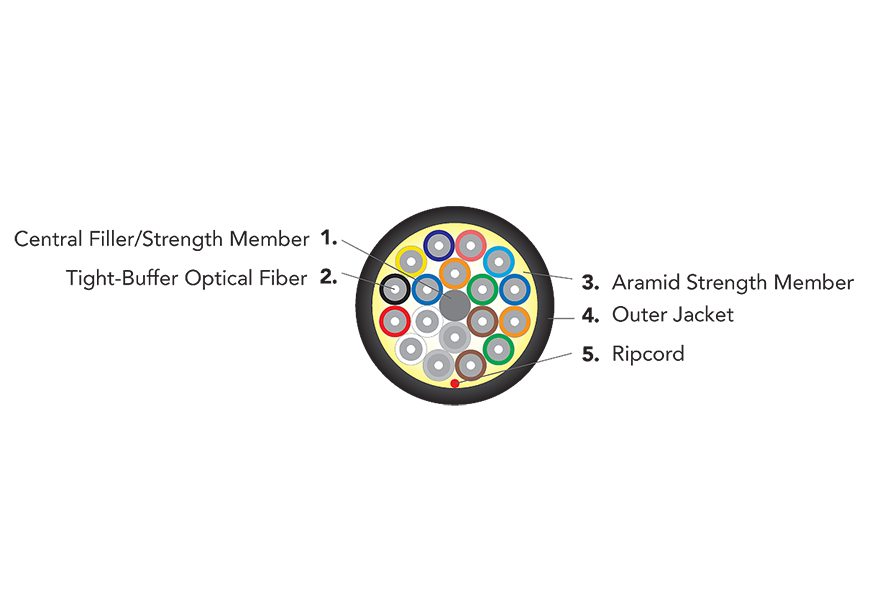

  • Multiple tight-buffered fibers stranded within a single jacket with common strength members
  • Ideal configuration for a single cable termination point requiring multiple fibers
  • Flame retardant - MSHA approved to Part 7, Subpart K of Title 30 Code of Federal Regulations (CFR)
  • Compact, lightweight cable design with the highest strength-to-weight ratio
  • Flexible, rugged, high-strength construction for long cable pulls
  • May be directly terminated with connectors with physical protection at termination points
  • Lower total installed costs
  • Helically stranded cable core for flexibility, survival in difficult pulls, and mechanical protection for the optical fibers
  • High performance tight-buffered coating on each optical fiber for environmental and mechanical protection

Characteristics

Characteristic Distribution Mining Cables
Operating Temp -40°C to +85°C
Storage Temp -55°C to +85°C
Install Temp -10°C to +60°C
Flame Retardancy MSHA- approved 30CFR 7.408 Signal Cable
Crush Resist 1800 N/cm
Impact Resist 1500 impacts
Flex Resist 2000 cycles
Jacket Type D

Standards

OCC's Indoor/Outdoor tight-buffered MSHA-rated mining cables meet the functional requirements of the following standards:

  • MSHA Approved 30CFR 7.408 Signal Cables
  • Part 7, Subpart K of Title 30 Code of Federal Regulations (CFR)
  • GR-409-CORE
  • ICEA-S-104-696
  • ICEA-S-83-596
  • TIA-568
  • TIA-598

Specifications

Distribution Mining Cables

Tensile Load Minimum Bend Radius
Fiber Count Part Number Part Number Configurator Diameter mm
(in)		 Weight kg/km
(lbs/1,000ft)		 Installation N
(lbs)		 Operation N
(lbs)		 Installation cm
(in)		 Longer Term cm
(in)
2 DX002D***9*S 4.8
(0.19) 		22.0
(14.0) 		660
(150) 		180
(40) 		7.3
(2.9) 		4.9
(1.9)
4 DX004D***9*S 5.1
(0.20) 		24.0
(16.0) 		1,400
(310) 		450
(100) 		7.7
(3.0) 		5.1
(2.0)
6 DX006D***9*S 5.7
(0.22) 		31.0
(21.0) 		1,400
(310) 		450
(100) 		8.6
(3.4) 		5.8
(2.3)
8 DX008D***9*S 5.9
(0.23) 		33.0
(22.0) 		1,600
(360) 		525
(120) 		8.9
(3.5) 		5.9
(2.3)
10 DX010D***9*S 7.0
(0.28) 		42.0
(28.0) 		1,800
(400) 		600
(135) 		10.6
(4.2) 		7.1
(2.8)
12 DX012D***9*S 6.5
(0.26) 		38.0
(25.0) 		2,700
(600) 		600
(135) 		9.8
(3.9) 		6.5
(2.6)
18 DX018D***9*S 7.2
(0.28) 		47.0
(31.0) 		2,700
(600) 		700
(160) 		10.8
(4.3) 		7.2
(2.8)
24 DX024D***9*S 8.9
(0.35) 		66.0
(44.0) 		3,000
(670) 		1,000
(220) 		13.4
(5.3) 		8.9
(3.5)
30 DX030D***9*S 8.8
(0.35) 		75.0
(50.0) 		3,000
(670) 		1,000
(220) 		13.3
(5.2) 		8.8
(3.5)
36 DX036D***9*S 9.1
(0.36) 		73.0
(49.0) 		3,000
(670) 		1,000
(220) 		13.7
(5.4) 		9.1
(3.6)
48 DX048D***9*S 10.1
(0.40) 		93.0
(63.0) 		4,200
(940) 		1,400
(310) 		15.2
(6.0) 		10.1
(4.0)
Click the symbol in the Part Number Configurator column above to a build specification sheet with specific part number information.
