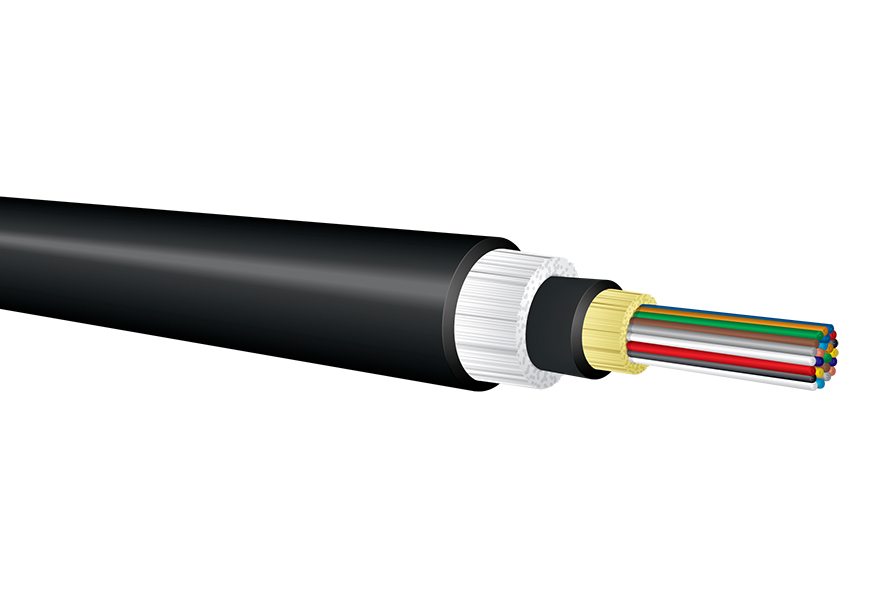

DX-Series Distribution – Mil-Tac Rodent Deterrent (FRP) Cables
Installation zone RECOMMENDATION1
1
1
1
- Ground-tactical cable that is ideal for use in harsh environments where deployment and retrieval for reuse are required
- Used in areas susceptible to damage from small non-burrowing rodents
Applications
- Ground-tactical cable that is ideal for use in harsh environments where deployment and retrieval for reuse are required
- Used in areas susceptible to damage from small non-burrowing rodents
Features

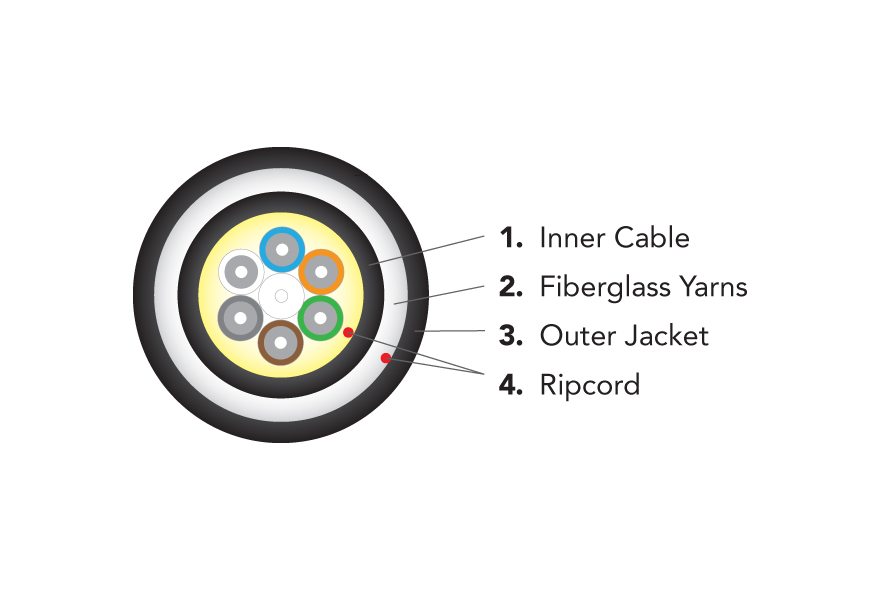

- Standard OCC D-Series Mil-Tac inner cable with an added layer of fiberglass yarn that provides effective deterrent to damage caused by small, non-burrowing rodents (not recommended for direct burial applications)
- FRP is ideal for use for surface installations
- Mil-Tac cable can be made in a variety of colors for easy identification or to blend into the environment
- Helically stranded cable core for flexibility, deployment survivability, and excellent mechanical protection for the optical fibers
- Cables are suitable for use with single, as well as multichannel connectors
- Excellent crush resistance to withstand crowd and vehicle traffic
- High tensile load rating for quick deployment and retrieval
- Water, fungus and UV resistant for extreme environments
- Outdoor, field-proven cables are easily deployed and retrieved for temporary or long-term data communications in harsh environments
- Standard Polyurethane (C), Flame-Retardant Tactical Polyurethane (V) and Low-Smoke Zero-Halogen (G) jackets are available
OCC PROVIDED OPTIONS
- Mil-Tac cables pre-spooled on deployable reels for a ready-to-use product
- Mil-Tac cables can be pre-terminated with single-fiber or ruggedized multichannel connectors upon request
Characteristics
| Characteristic | C Jacket | V Jacket | G Jacket |
|---|---|---|---|
| Operating Temp | -55°C to +85°C | -55°C to +85°C | -55°C to +85°C |
| Storage Temp | -70°C to +85°C | -70°C to +85°C | -70°C to +85°C |
| Crush Resist | 1800 N/cm | 1800 N/cm | 1800 N/cm |
| Impact Resist | 1500 impacts | 1500 impacts | 1500 impacts |
| Flex Resist | 2000 cycles | 2000 cycles | 2000 cycles |
| Jacket Type | C | V | G |
Specifications
C Jacket
| Tensile Load | Minimum Bend Radius | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Fiber Count | Part Number | Part Number Configurator | Diameter mm (in) |
Weight kg/km (lbs/1,000ft) |
Installation N (lbs) |
Operation N (lbs) |
Installation cm (in) |
Longer Term cm (in) |
|
| 2 | D-002C***5KMF9 |
10.7 (0.42) |
104.0 (70.0) |
1,800 (400) |
600 (130) |
16.1 (6.3) |
10.7 (4.2) |
||
| 4 | D-004C***5KMF9 |
10.7 (0.42) |
104.0 (70.0) |
1,800 (400) |
600 (130) |
16.1 (6.3) |
10.7 (4.2) |
||
| 6 | D-006C***5KMF9 |
10.7 (0.42) |
104.0 (70.0) |
1,800 (400) |
600 (130) |
16.1 (6.3) |
10.7 (4.2) |
||
| 8 | D-008C***5KMF9 |
11.6 (0.46) |
123.0 (83.0) |
1,800 (400) |
600 (130) |
17.4 (6.9) |
11.6 (4.6) |
||
| 10 | D-010C***5KMF9 |
11.6 (0.46) |
125.0 (840.0) |
2,100 (470) |
700 (160) |
17.4 (6.9) |
11.6 (4.6) |
||
| 12 | D-012C***5KMF9 |
12.7 (0.50) |
145.0 (97.0) |
2,100 (470) |
700 (160) |
19.1 (7.5) |
12.7 (5.0) |
||
| 18 | D-018C***5KMF9 |
12.4 (0.49) |
139.0 (93.0) |
2,400 (540) |
800 (180) |
18.6 (7.3) |
12.4 (4.9) |
||
| 24 | D-024C***5KMF9 |
13.2 (0.52) |
156.0 (105.0) |
3,000 (670) |
1,000 (220) |
19.8 (7.8) |
13.2 (5.2) |
||
V Jacket
| Tensile Load | Minimum Bend Radius | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Fiber Count | Part Number | Part Number Configurator | Diameter mm (in) |
Weight kg/km (lbs/1,000ft) |
Installation N (lbs) |
Operation N (lbs) |
Installation cm (in) |
Longer Term cm (in) |
|
| 2 | D-002V***5KMF8 |
10.0 (0.39) |
101.0 (68.0) |
1,800 (400) |
600 (130) |
15.0 (5.9) |
10.0 (3.9) |
||
| 4 | D-004V***5KMF8 |
10.0 (0.39) |
101.0 (68.0) |
1,800 (400) |
600 (130) |
15.0 (5.9) |
10.0 (3.9) |
||
| 6 | D-006V***5KMF8 |
10.0 (0.39) |
101.0 (68.0) |
1,800 (400) |
600 (130) |
15.0 (5.9) |
10.0 (3.9) |
||
| 8 | D-008V***5KMF8 |
10.8 (0.43) |
118.0 (79.0) |
1,800 (400) |
600 (130) |
15.2 (6.0) |
10.8 (4.3) |
||
| 10 | D-010V***5KMF8 |
10.8 (0.43) |
119.0 (80.0) |
2,100 (470) |
700 (160) |
16.2 (6.4) |
10.8 (4.3) |
||
| 12 | D-012V***5KMF8 |
11.9 (0.47) |
140.0 (94.0) |
2,100 (470) |
700 (160) |
17.9 (7.0) |
11.9 (4.7) |
||
| 18 | D-018V***5KMF8 |
11.6 (0.46) |
138.0 (93.0) |
2,400 (540) |
800 (180) |
17.4 (6.9) |
11.6 (4.6) |
||
| 24 | D-024V***5KMF8 |
12.5 (0.49) |
159.0 (107.0) |
3,000 (670) |
1,000 (220) |
18.8 (7.4) |
12.5 (4.9) |
||
G Jacket
| Tensile Load | Minimum Bend Radius | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Fiber Count | Part Number | Part Number Configurator | Diameter mm (in) |
Weight kg/km (lbs/1,000ft) |
Installation N (lbs) |
Operation N (lbs) |
Installation cm (in) |
Longer Term cm (in) |
|
| 2 | D-002G***5KMFB |
10.0 (0.39) |
98.0 (66.0) |
1,800 (400) |
600 (130) |
15.0 (5.9) |
10.0 (3.9) |
||
| 4 | D-004G***5KMFB |
10.0 (0.39) |
98.0 (66.0) |
1,800 (400) |
600 (130) |
15.0 (5.9) |
10.0 (3.9) |
||
| 6 | D-006G***KKMFB |
10.0 (0.39) |
98.0 (66.0) |
1,800 (400) |
600 (130) |
15.0 (5.9) |
10.0 (3.9) |
||
| 8 | D-008G***5KMFB |
10.8 (0.43) |
115.0 (77.0) |
1,800 (400) |
600 (130) |
16.2 (6.4) |
10.8 (4.3) |
||
| 10 | D-010G***5KMFB |
10.8 (0.43) |
117.0 (79.0) |
2,100 (470) |
700 (160) |
16.2 (6.4) |
10.8 (4.3) |
||
| 12 | D-012G***5KMFB |
11.9 (0.47) |
137.0 (92.0) |
2,100 (470) |
700 (160) |
17.9 (7.0) |
11.9 (4.7) |
||
| 18 | D-018G***5KMFB |
11.6 (0.46) |
135.0 (91.0) |
2,400 (540) |
800 (180) |
17.4 (6.9) |
11.6 (4.6) |
||
| 24 | D-024G***5KMFB |
12.5 (0.49) |
155.0 (104.0) |
3,000 (670) |
1,000 (220) |
18.8 (7.4) |
12.5 (4.9) |
||
Click the symbol in the Part Number Configurator column above to a build specification sheet with specific part number information.
