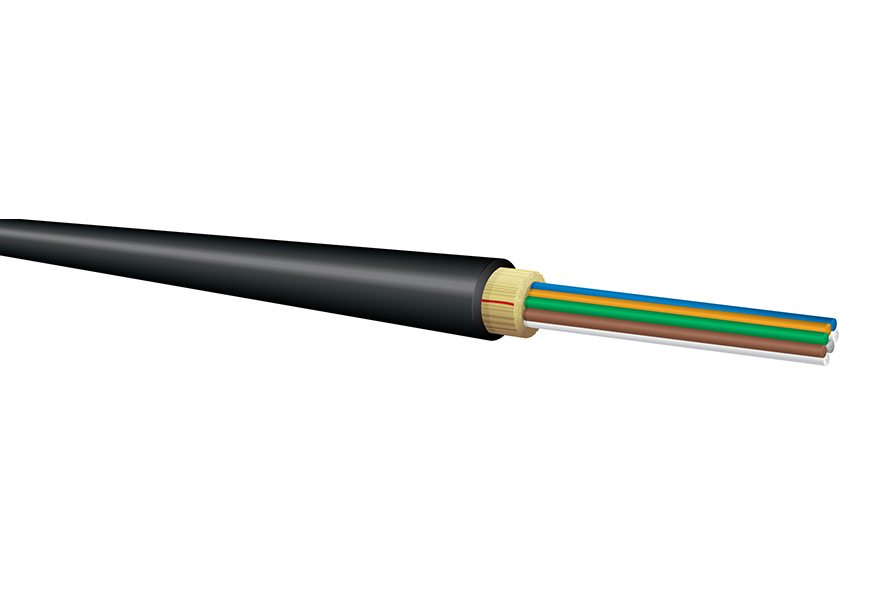

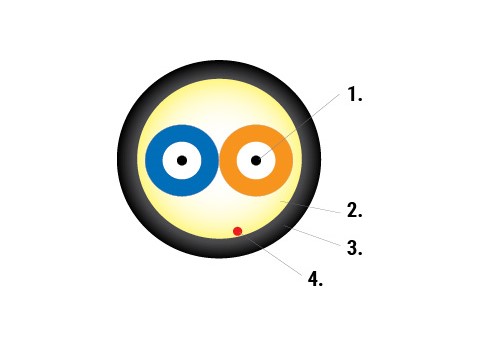

DX-Series Distribution – Field Broadcast Cables
Installation zone RECOMMENDATION1
1
1
1
- Deployable cable that is ideal for use in harsh environments where deployment and retrieval for reuse are required
Applications
- Deployable cable that is ideal for use in harsh environments where deployment and retrieval for reuse are required
Features
- Extremely strong, lightweight, rugged, survivable tight-buffered cables are designed for broadcast field use and commercial applications
- Compact, round cable design for ease of transportation and deployment
- Core-locked® jacket for improved mechanical performance
- Designed for use in adverse environments where reduced size and weight are important
- Helically stranded cable core for flexibility, survival in difficult pulls, and exceptional mechanical protection for the optical fibers
- Cables have been tested and are in use in broadcast data communications applications worldwide
- Can be used outdoors for temporary deployment directly on the ground in all terrains, including severe environments
- Suitable for industrial, mining and petrochemical environments; chemical resistant
- Crush resistant and resilient with a thick layer of aramid strength members
- Polyurethane jacketed for abrasion, cut and chemical resistance
- Most commonly used with ruggedized multiway military tactical field connectors, for maximum connector retention (400lbs.)
- Tactical Polyurethane (C) outer jacket materials is standard; Flame-Retardant Tactical (V) and Low-Smoke Zero-Halogen (G) outer jacket materials are available
OCC PROVIDED OPTIONS
- Broadcast cables pre-spooled on deployable reels for a ready-to-use product
- Broadcast cables can be pre-terminated with single-fiber or ruggedized multichannel connectors upon request
Characteristics
| Characteristic | C Jacket | G Jacket | V Jacket |
|---|---|---|---|
| Operating Temp | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C |
| Storage Temp | -70°C to +85°C | -70°C to +85°C | -70°C to +85°C |
| Crush Resist | 1800 N/cm | 1800 N/cm | 1800 N/cm |
| Impact Resist | 1500 impacts | 1500 impacts | 1500 impacts |
| Flex Resist | 2000 cycles | 2000 cycles | 2000 cycles |
| Jacket Type | C | G | V |
Specifications
C Jacket
| Tensile Load | Minimum Bend Radius | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Fiber Count | Part Number | Part Number Configurator | Diameter mm (in) |
Weight kg/km (lbs/1,000ft) |
Installation N (lbs) |
Operation N (lbs) |
Installation cm (in) |
Longer Term cm (in) |
|
| 2 | DX002C***9KB |
5.0 (0.20) |
21.0 (14.0) |
1,800 (400) |
600 (130) |
5.0 (2.0) |
2.5 (1.0) |
||
| 4 | DX004C***9KB |
5.5 (0.22) |
27.0 (18.0) |
1,800 (400) |
600 (130) |
5.5 (2.2) |
2.8 (1.1) |
||
| 6 | DX006C***9KB |
6.0 (0.24) |
32.0 (22.0) |
1,800 (400) |
600 (130) |
6.0 (2.4) |
3.0 (1.2) |
||
| 8 | DX008C***9KB |
6.5 (0.26) |
37.0 (25.0) |
1,800 (400) |
600 (130) |
6.5 (2.6) |
3.3 (1.3) |
||
| 10 | DX010C***9KB |
6.5 (0.26) |
38.0 (26.0) |
2,100 (470) |
700 (160) |
6.5 (2.6) |
3.3 (1.3) |
||
| 12 | DX012C***9KB |
6.5 (0.26) |
41.0 (28.0) |
2,100 (470) |
700 (160) |
6.5 (2.6) |
3.3 (1.3) |
||
| 18 | DX018C***9KB |
7.5 (0.30) |
48.0 (32.0) |
2,400 (540) |
800 (180) |
7.5 (3.0) |
3.8 (1.5) |
||
| 24 | DX024C***9KB |
8.5 (0.33) |
60.0 (40.0) |
3,000 (670) |
1,000 (220) |
8.5 (3.3) |
4.3 (1.7) |
||
G Jacket
| Tensile Load | Minimum Bend Radius | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Fiber Count | Part Number | Part Number Configurator | Diameter mm (in) |
Weight kg/km (lbs/1,000ft) |
Installation N (lbs) |
Operation N (lbs) |
Installation cm (in) |
Longer Term cm (in) |
|
| 2 | DX002G***9KB |
5.0 (0.20) |
22.0 (15.0) |
1,800 (400) |
600 (130) |
5.0 (2.0) |
2.5 (1.0) |
||
| 4 | DX004G***9KB |
5.5 (0.22) |
28.0 (19.0) |
1,800 (400) |
600 (130) |
5.5 (2.2) |
2.8 (1.1) |
||
| 6 | DX006G***9KB |
6.0 (0.24) |
33.0 (22.0) |
1,800 (400) |
600 (130) |
6.0 (2.4) |
3.0 (1.2) |
||
| 8 | DX008G***9KB |
6.5 (0.26) |
38.0 (26.0) |
1,800 (400) |
600 (130) |
6.5 (2.6) |
3.3 (1.3) |
||
| 10 | DX010G***9KB |
6.5 (0.26) |
39.0 (26.0) |
2,100 (470) |
700 (160) |
6.5 (2.6) |
3.3 (1.3) |
||
| 12 | DX012G***9KB |
6.5 (0.26) |
42.0 (28.0) |
2,100 (470) |
700 (160) |
6.5 (2.6) |
3.3 (1.3) |
||
| 18 | DX018G***9KB |
7.5 (0.30) |
49.0 (33.0) |
2,400 (540) |
800 (180) |
7.5 (3.0) |
3.8 (1.5) |
||
| 24 | DX024G***9KB |
8.5 (0.33) |
62.0 (42.0) |
3,000 (670) |
1,000 (220) |
8.5 (3.3) |
4.3 (1.7) |
||
V Jacket
| Tensile Load | Minimum Bend Radius | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Fiber Count | Part Number | Part Number Configurator | Diameter mm (in) |
Weight kg/km (lbs/1,000ft) |
Installation N (lbs) |
Operation N (lbs) |
Installation cm (in) |
Longer Term cm (in) |
|
| 2 | DX002V***9KB |
5.0 (0.20) |
24.0 (16.0) |
1,800 (400) |
600 (130) |
5.0 (2.0) |
2.5 (1.0) |
||
| 4 | DX004V***9KB |
5.5 (0.22) |
29.0 (19.0) |
1,800 (400) |
600 (130) |
5.5 (2.2) |
2.8 (1.1) |
||
| 6 | DX006V***9KB |
6.0 (0.24) |
34.0 (23.0) |
1,800 (400) |
600 (130) |
6.0 (2.4) |
3.0 (1.2) |
||
| 8 | DX008V***9KB |
6.5 (0.26) |
39.0 (26.0) |
1,800 (400) |
600 (130) |
6.5 (2.6) |
3.3 (1.3) |
||
| 10 | DX010V***9KB |
6.5 (0.26) |
40.0 (27.0) |
2,100 (470) |
700 (160) |
6.5 (2.6) |
3.3 (1.3) |
||
| 12 | DX012V***9KB |
6.5 (0.26) |
43.0 (29.0) |
2,100 (470) |
700 (160) |
6.5 (2.6) |
3.3 (1.3) |
||
| 18 | DX018V***9KB |
7.5 (0.30) |
51.0 (34.0) |
2,400 (540) |
800 (180) |
7.5 (3.0) |
3.8 (1.5) |
||
| 24 | DX024V***9KB |
8.5 (0.33) |
63.0 (42.0) |
3,000 (670) |
1,000 (220) |
8.5 (3.3) |
4.3 (1.7) |
||
Click the symbol in the Part Number Configurator column above to a build specification sheet with specific part number information.
