DNV-Certified Shipboard Cables
Installation zone RECOMMENDATION1
1
1
1
- Signaling, communication, and data transmission for fixed and deployable networks on board ships and offshore structures with applications including: Mobile Offshore Drilling Units (MODUs), Floating Production Storage and Offloading (FPSO), Tension Leg Platforms (TLP), Liquefied Natural Gas (LNG)
Features
- Low-smoke Zero-halogen (LSZH)cable
- Rugged cable for deck applications
- Flame-retardant

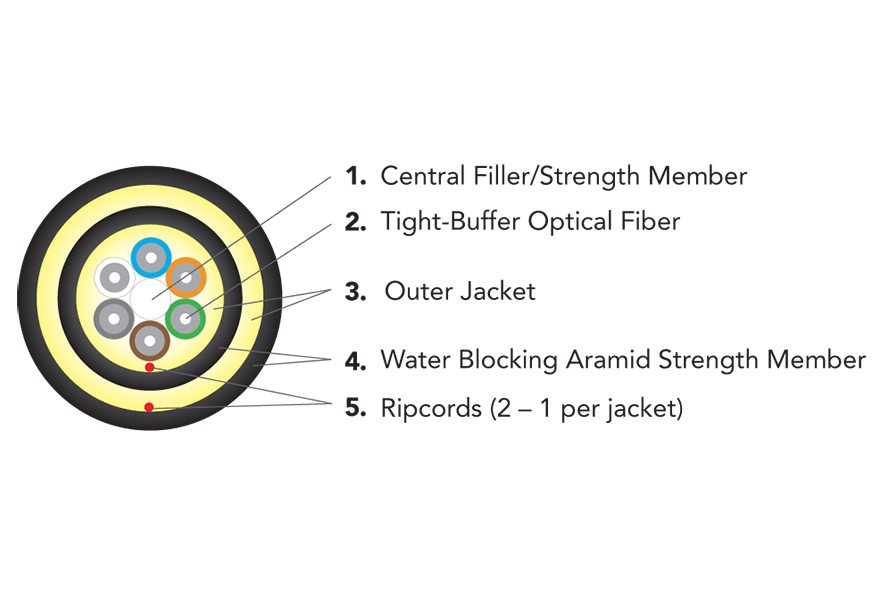

- 2- to 6-fiber double jacketed D-Series Distribution cable constructions are available
- Optical fiber types include 62.5/125, 50/125, and single-mode
- Available with 500µm primary acrylate-coated fiber for maximum mechanical and environmental protection of the optical fiber
- DNV-Certified - DNV type approval certificate No. TAE00003F5
- Meets IEC standards for flame spread, smoke density, and halogen content
Characteristics
| Characteristic | DNV |
|---|---|
| Operating Temp | -40°C to +85°C |
| Storage Temp | -55°C to +85°C |
| Install Temp | -10°C to +60°C |
| Flame Retardancy | IEC 60332-1, 60332-3 |
Specifications
DNV
| Tensile Load | Minimum Bend Radius | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Fiber Count | Part Number | Part Number Configurator | Diameter mm (in) |
Weight kg/km (lbs/1,000ft) |
Installation N (lbs) |
Operation N (lbs) |
Installation cm (in) |
Longer Term cm (in) |
|
| 2-6 | OC031016-** | Please Call OCC for ordering assistance. |
9.5 (0.37) |
95.0 (64.0) |
1,200 (270) |
400 (90) |
14.3 (5.6) |
9.5 (3.7) |
|
