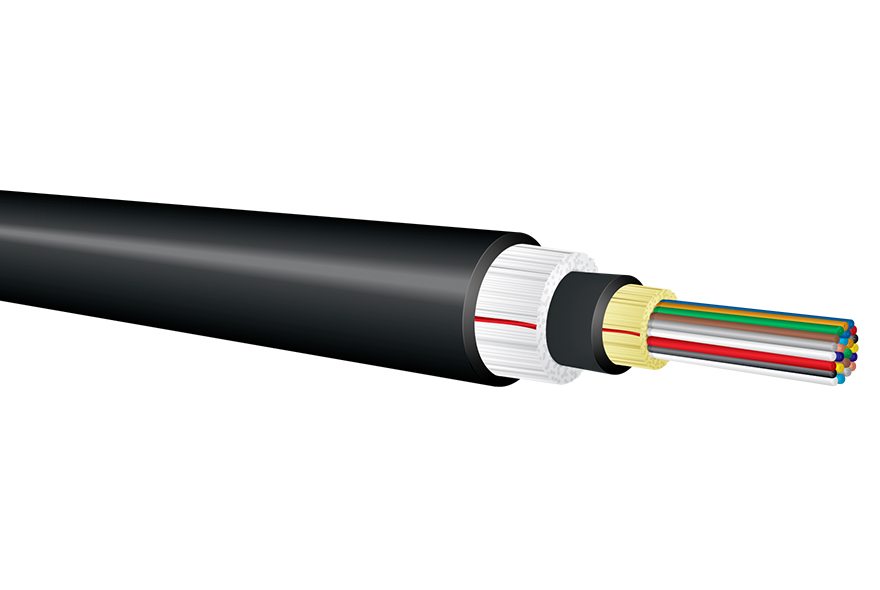

D-Series Distribution – Field Broadcast Rodent Deterrent (FRP) Cables

Installation zone RECOMMENDATION
1
1
1
1
  • Deployable cable that is ideal for use in harsh environments where deployment and retrieval for reuse are required for temporary broadcast networks
  • Used in areas susceptible to damage from small non-burrowing rodents

Applications

  • Deployable cable that is ideal for use in harsh environments where deployment and retrieval for reuse are required for temporary broadcast networks
  • Used in areas susceptible to damage from small non-burrowing rodents

Features

  • Includes a layer of fiberglass yarn that provides and effective deterrent to damage caused by small non-burrowing rodents
  • FRP is ideal for use for surface installations (not recommended for direct burial applications)
  • Broadcast cables made in a variety of colors for easy identification or to blend into the environment
  • 2 to 24 fibers, high fiber counts available on request

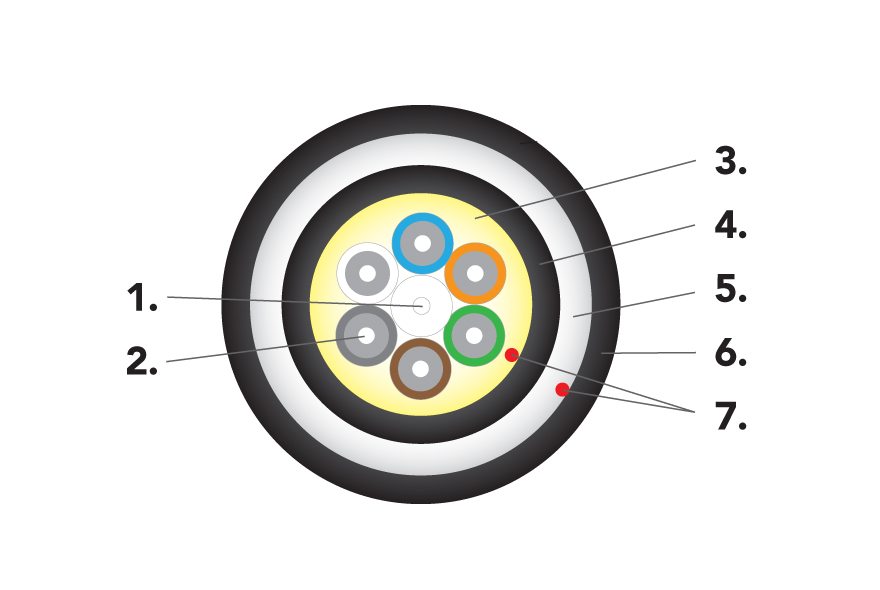

  • Helically stranded cable core for flexibility, deployment survivability, and excellent mechanical protection for the optical fibers
  • Cables are suitable for use with single, as well as multi-channel connectors
  • Excellent crush resistance to withstand crowd and vehicle traffic
  • High tensile load ratings for quick deployment and retrieval
  • Water, fungus, and UV resistant for extreme environments
  • Outdoor, field-proven cables are easily deployed and retrieved for remote news gathering and sporting events
  • Standard Polyurethane (C), Flame-Retardant Tactical Polyurethane (V), and Low-Smoke Zero-Halogen (G) jackets are available

OCC PROVIDED OPTIONS

  • Broadcast cables are pre-spooled on deployable reels for ready-to-use product
  • Broadcast cables can be pre-terminated with single fiber or ruggedized multi-channel connectors upon request

Characteristics

Characteristic C Jacket V Jacket G Jacket
Operating Temp -40°C to +85°C -40°C to +85°C -40°C to +85°C
Storage Temp -70°C to +85°C -70°C to +85°C -70°C to +85°C
Crush Resist 1800 N/cm 1800 N/cm 1800 N/cm
Impact Resist 1500 impacts 1500 impacts 1500 impacts
Flex Resist 2000 cycles 2000 cycles 2000 cycles
Jacket Type C V G

Specifications

C Jacket

Tensile Load Minimum Bend Radius
Fiber Count Part Number Part Number Configurator Diameter mm
(in)		 Weight kg/km
(lbs/1,000ft)		 Installation N
(lbs)		 Operation N
(lbs)		 Installation cm
(in)		 Longer Term cm
(in)
2 DX002C***9KBF9 10.7
(0.42) 		104.0
(70.0) 		1,800
(400) 		600
(130) 		16.1
(6.3) 		10.7
(4.2)
4 DX004C***9KBF9 10.7
(0.42) 		104.0
(70.0) 		1,800
(400) 		600
(130) 		16.1
(6.3) 		10.7
(4.2)
6 DX006C***9KBF9 10.7
(0.42) 		104.0
(70.0) 		1,800
(400) 		600
(130) 		16.1
(6.3) 		10.7
(4.2)
8 DX008C***9KBF9 11.6
(0.46) 		123.0
(83.0) 		1,800
(400) 		600
(130) 		17.4
(6.9) 		11.6
(4.6)
10 DX010C***9KBF9 11.6
(0.46) 		125.0
(84.0) 		2,100
(470) 		700
(160) 		17.4
(6.9) 		11.6
(4.6)
12 DX012C***9KBF9 12.7
(0.50) 		145.0
(97.0) 		2,100
(470) 		700
(160) 		19.1
(7.5) 		12.7
(5.0)
18 DX018C***9KBF9 12.4
(0.49) 		139.0
(93.0) 		2,400
(540) 		800
(180) 		18.6
(7.3) 		12.4
(4.9)
24 DX024C***9KBF9 13.2
(0.52) 		156.0
(105.0) 		3,000
(670) 		1,000
(220) 		19.8
(7.8) 		13.2
(5.2)

V Jacket

Tensile Load Minimum Bend Radius
Fiber Count Part Number Part Number Configurator Diameter mm
(in)		 Weight kg/km
(lbs/1,000ft)		 Installation N
(lbs)		 Operation N
(lbs)		 Installation cm
(in)		 Longer Term cm
(in)
2 DX002V***9KBF8 10.0
(0.39) 		101.0
(68.0) 		1,800
(400) 		600
(130) 		15.0
(5.9) 		10.0
(3.9)
4 DX004V***9KBF8 10.0
(0.39) 		101.0
(68.0) 		1,800
(400) 		600
(130) 		15.0
(5.9) 		10.0
(3.9)
6 DX006V***9KBF8 10.0
(0.39) 		101.0
(68.0) 		1,800
(400) 		600
(130) 		15.0
(5.9) 		10.0
(3.9)
8 DX008V***9KBF8 10.8
(0.43) 		118.0
(79.0) 		1,800
(400) 		600
(130) 		16.2
(6.4) 		10.8
(4.3)
10 DX010V***9KBF8 10.8
(0.43) 		119.0
(80.0) 		2,100
(470) 		700
(160) 		16.2
(6.4) 		10.8
(4.3)
12 DX012V***9KBF8 11.9
(0.47) 		140.0
(94.0) 		2,100
(470) 		700
(160) 		17.9
(7.0) 		11.9
(4.7)
18 DX018V***9KBF8 11.6
(0.46) 		138.0
(93.0) 		2,400
(540) 		800
(180) 		17.4
(6.9) 		11.6
(4.6)
24 DX024V***KBF9 12.5
(0.49) 		159.0
(107.0) 		3,000
(670) 		1,000
(220) 		18.8
(7.4) 		12.5
(4.9)

G Jacket

Tensile Load Minimum Bend Radius
Fiber Count Part Number Part Number Configurator Diameter mm
(in)		 Weight kg/km
(lbs/1,000ft)		 Installation N
(lbs)		 Operation N
(lbs)		 Installation cm
(in)		 Longer Term cm
(in)
2 DX002G***9KBFB 10.0
(0.39) 		98.0
(66.0) 		1,800
(400) 		600
(130) 		15.0
(5.9) 		10.0
(3.9)
4 DX004G***9KBFB 10.0
(0.39) 		98.0
(66.0) 		1,800
(400) 		600
(130) 		15.0
(5.9) 		10.0
(3.9)
6 DX006G***9KBFB 10.0
(0.39) 		98.0
(66.0) 		1,800
(400) 		600
(130) 		15.0
(5.9) 		10.0
(3.9)
8 DX008G***9KBFB 10.8
(0.43) 		115.0
(77.0) 		1,800
(400) 		600
(130) 		16.2
(6.4) 		10.8
(4.3)
10 DX010G***9KBFB 10.8
(0.43) 		117.0
(79.0) 		2,100
(470) 		700
(160) 		16.2
(6.4) 		10.8
(4.3)
12 DX012G***9KBFB 11.9
(0.47) 		137.0
(92.0) 		2,100
(470) 		700
(160) 		17.9
(7.0) 		11.9
(4.7)
18 DX018G***9KBFB 11.6
(0.46) 		135.0
(91.0) 		2,400
(540) 		800
(180) 		17.4
(6.9) 		11.6
(4.6)
24 DX024G***9KBFB 12.5
(0.49) 		155.0
(104.0) 		3,000
(670) 		1,000
(220) 		18.8
(7.4) 		12.5
(4.9)
Talk to a knowledgeable OCC Expert that can find or customize a product to fit your specifications. 800-622-7711
