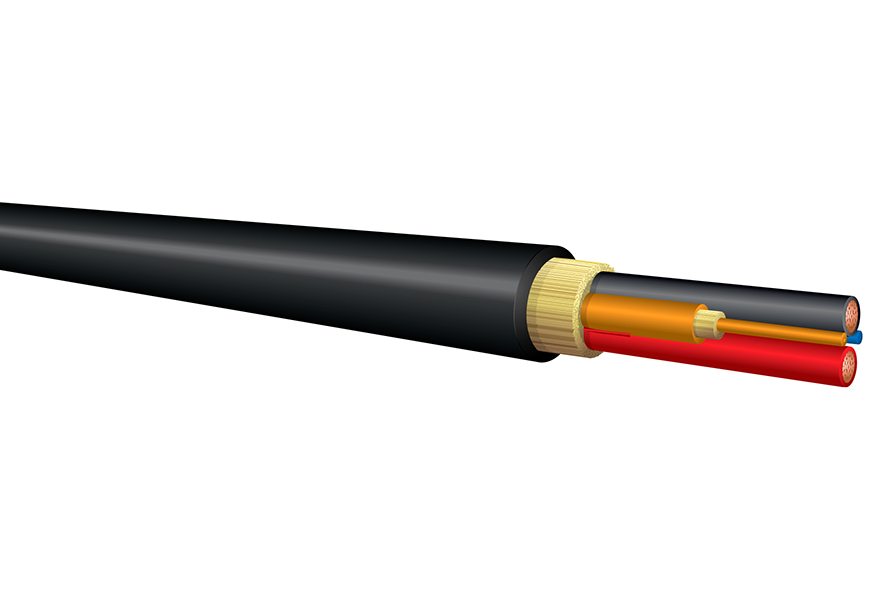

CX-Series Hybrid Riser Cables
Installation zone RECOMMENDATION1
1
1
1
- Ideal for data communication and control installations that require fiber and copper under one cable jacket
- Hybrid fiber/copper cables are intended for use on Class 2 power-limited circuits as described in Article 725 of the National Electrical Code
Features
- Various combinations of copper conductors and optical fibers in a single hybrid cable
- Chemical-resistant outer jacket available for harsh industrial or outdoor environments
- 12, 14, 16, 18 gauge single-stranded copper wire available for power, communication, control sensor, signal, and video
- Multimode (62.5μm or 50μm) and single-mode fiber available – contact Optical Cable Corporation for specifications and part numbers
- Larger gauge wires overcome powering distance limitations of unshielded twisted pair

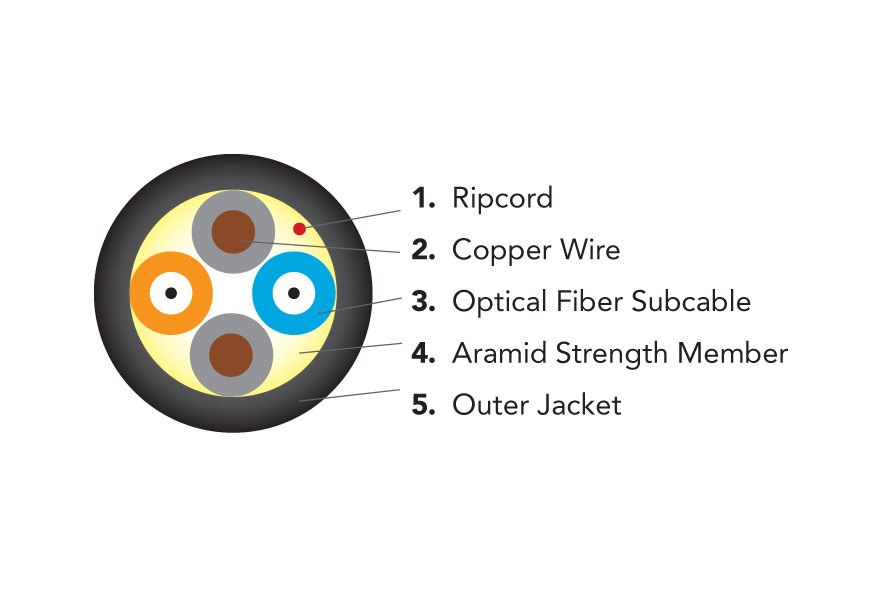

- Copper and fiber individually subcabled for ease of separation, handling and termination
- Round cable design for easy installation and survivability
- Many combinations available with CL2R riser ratings per UL 13
- Interlocking armor available
Standards
Optical Cable Corporation's Indoor/Outdoor tight-buffered fiber optic cables meet the functional requirements of the following standards:
- UL 13
Specifications
* Many combinations of optical fiber and wires can be manufactured to your specific requirements. Please contact Optical Cable Corporation for a price quote and specifications for the Composite Fiber/Copper Cable design that meets all your special application requirements.
