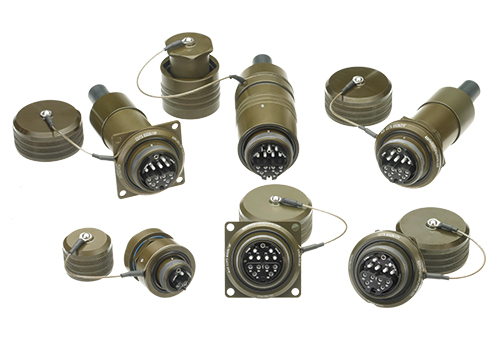

COTS M83526 Style – 12 CH Fiber Optic Cable Assembly

Installation zone RECOMMENDATION
1
1
1
1

For fiber counts greater than 6 channels, OCC also manufactures its TFOCA/16-F plugs and TFOCA/17-F receptacles which are inter-matable and inter-changeable with the AFSI 12CH M83526 style connector family. This larger shell size “F” version of the TFOCA/16 and TFOCA/17 features a removable insert cap with retained split ceramic sleeves and is suitable for either multimode or single-mode applications. Plug-to-plug (TFOCA/16-F) assemblies are available in 4, 6, 8 or 12 channels, fabricated with 4, 6, 8 or 12 fiber military tactical cable. Receptacle assemblies are available in Jam Nut (TFOCA/17-F) or Flange Mount (TFOCA/18-F) configurations, and feature a selection of MIL ST, COTS ST, SC, FC, LC or MT-RJ pigtails. These style fiber optic assemblies can only be sold to the United States Government or to contractors servicing the United States Government.

Specifications

Part Number Description
A4-1000-100-F-CCCC 12 CH, Plug-to-Plug Cable Assembly, 100M, Distribution Tactical Cable, Hannay-style Reel
A4-1000-150-F-CCCC 12 CH, Plug-to-Plug Cable Assembly, 150M, Distribution Tactical Cable, Hannay-style Reel
A4-1000-300-F-CCCC 12 CH, Plug-to-Plug Cable Assembly, 300M, Distribution Tactical Cable, Hannay-style Reel
A4-1000-400-F-CCCC 12 CH, Plug-to-Plug Cable Assembly, 400M, Distribution Tactical Cable, Hannay-style Reel
A4-1000-500-F-CCCC 12 CH, Plug-to-Plug Cable Assembly, 500M, Distribution Tactical Cable, Hannay-style Reel
A4-1000-1000-F-CCCC 12 CH, Plug-to-Plug Cable Assembly, 1000M, Distribution Tactical Cable, Hannay-style Reel
A4-4000-ST1-XXX-F-CCCC 12 CH, Jam Nut Receptacle with Rugged (COTS) ST
A4-4000-ST2-XXX-F-CCCC 12 CH, Jam Nut Receptacle with M83522/16-DN or DNY ST
A4-4000-SC-XXX-F-CCCC 12 CH, Jam Nut Receptacle with SC Connector
A4-4000-LC-XXX-F-CCCC 12 CH, Jam Nut Receptacle with LC Connector
A4-7000-ST1-XXX-F-CCCC 12 CH, Square Flange Receptacle with Rugged (COTS) ST
A4-7000-ST2-XXX-F-CCCC 12 CH, Square Flange Receptacle with M83522/16-DN or DNY ST
A4-7000-SC-XXX-F-CCCC 12 CH, Square Flange Receptacle with SC Connector
A4-7000-LC-XXX-F-CCCC 12 CH, Square Flange Receptacle with LC Connector

Please contact OCC - Dallas facility for additional information:  Toll Free: 877-509-1500, Direct: +1-972-509-1500 or Email: info@occfiber.com.
