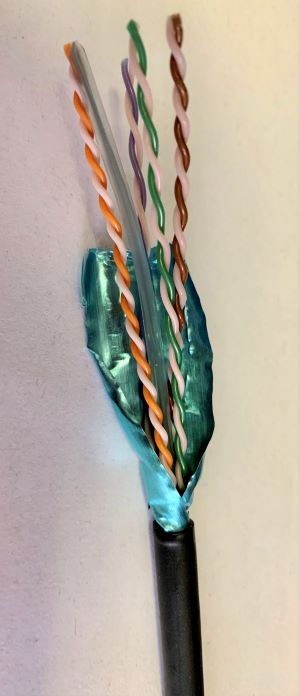

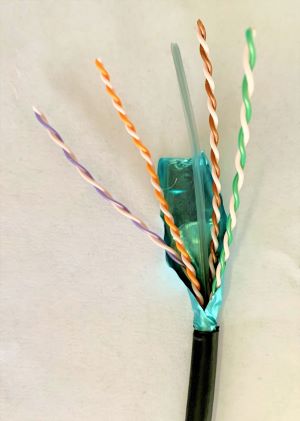

Category 6A Indoor/Outdoor UTP CMP Copper Cable

Installation zone RECOMMENDATION
1
1
1
1

Construction

  • Conductor:
    • 23 AWG Solid Copper
    • Insulation: FEP
  • Color Code:
    • Pair 1: Blue - White
    • Pair 2: Orange - White
    • Pair 3 - Green - White
    • Pair 4: Brown - White

Jacket

  • Black PVDF
  • Cable Diameter: 0.270” (nominal)

Cabling

THE FOUR (4) TWISTED PAIRS ARE CABLED AROUND AN ISOLATOR WITH A LEFT HAND LAY AND WRAPPED WITH A POLYESTER TAPE. TAPE IS APPLIED OVERALL (ALUMINUM SIDE IN) AND A 24 AWG, 25% ± 10% OVERLAP ON TAPE.

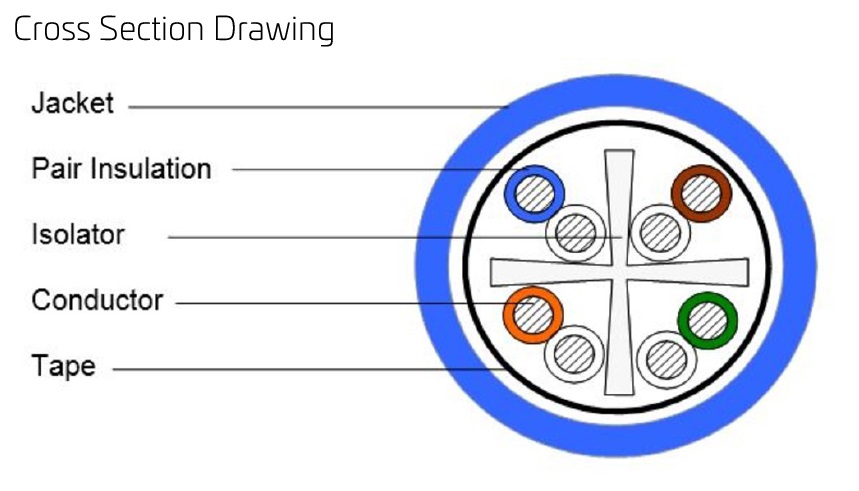

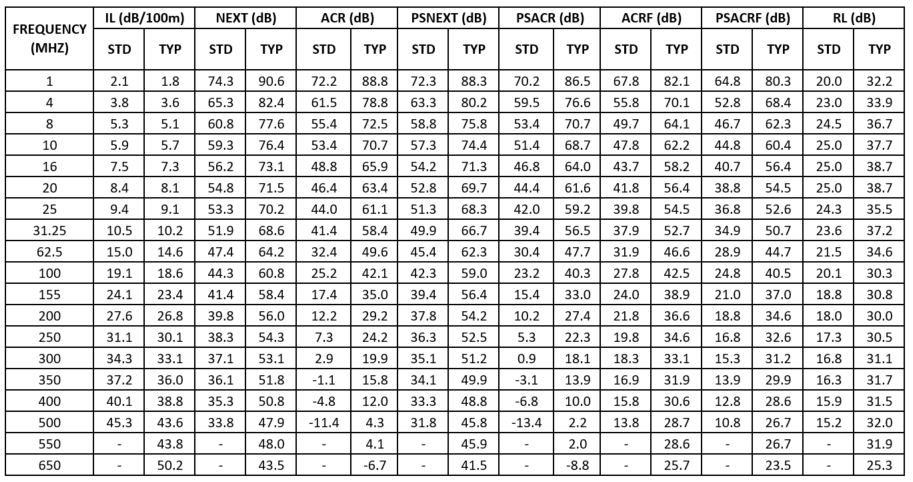

Category 6A UTP Electrical Characteristics*:

  • Characteristic Impedance: 100 ± 15Ω (1.0 to 500 MHz)
  • Maximum Conductor Resistance: 8.0Ω / 100 Meters @ 20° C
  • Maximum Resistance Unbalanced: 4%
  • Maximum Mutual Capacitance: 5.6nF/100 meters @ 1kHz
  • Nominal velocity of propagation (NVP): 70%

Applications

  • 10GBASE-T Ethernet
  • 2.5/5GBASE-T Ethernet
  • 1000BASE-T Gigabit Ethernet
  • Supports all IEEE standards for DC power delivery over 4-pair cabling when installed in accordance with TIA Telecommunications Systems Bulletin TSB-184-A, Guidelines for Supporting Power Delivery Over Balanced Twisted-Pair Cabling
  • All other applications developed for operation over Category 6A cabling

Features

  • Suitable for Indoor (CMP) and Outdoor Locations
    • Not Suitable for Direct Burial
  • Sunlight Resistant
  • Tested from 1 to 650 MHz and Offers Typical Performance Headroom above TIA Category 6A Cable Requirements
  • Compatible with OCC Category 6A jacks and patch panels for optimal system performance

Standards

  • ANSI/TIA-568.2 Category 6A
  • ANSI/ICEA S-100-685

Specifications

Download Drawing
Part Number Description UOM OD Weight PDF DWG/ZIP
OCC-U6A4PIO Category 6A UTP CMP Indoor/Outdoor Cable REEL 0.270" 28.8 lbs/1000 ft Download Download

Instruction Sheets

Talk to a knowledgeable OCC Expert that can find or customize a product to fit your specifications. 800-622-7711
