Category 6 F/UTP Copper Cable

Installation zone RECOMMENDATION
1
1
1
1

Construction:

  • Conductor: 23 AWG (.0226") solid bare copper
  • Color Code:
    • Pair 1: Blue - White
    • Pair 2: Orange - White
    • Pair 3 - Green - White
    • Pair 4: Brown - White
  • Jacket:
    • Riser rated -- flame-retardant PVC, UL listed type FT4 per UL 444
    • Plenum rated -- low-smoke flame-retardant PVC, UL listed type FT6 per UL 444

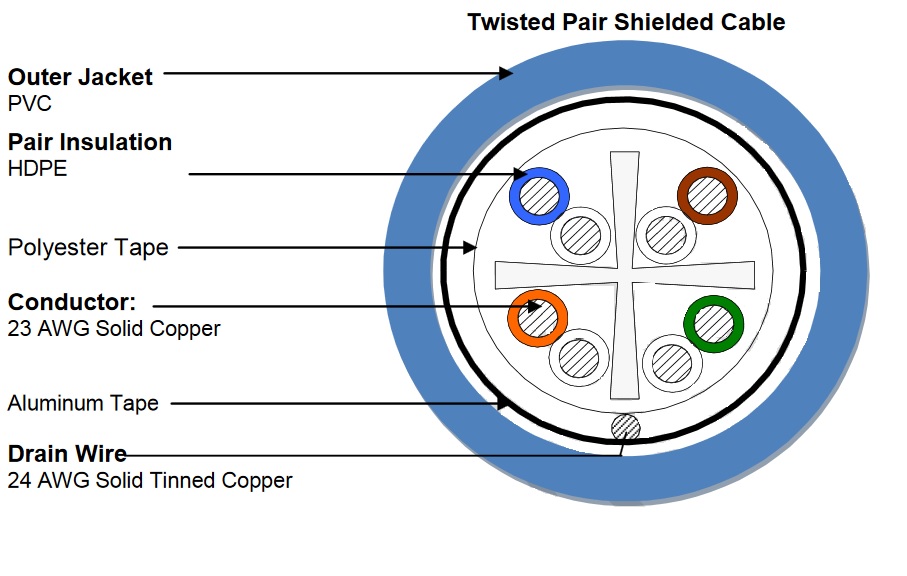

  • Cabling: F/UTP -- Four twisted pairs are cabled around a star filler and wrapped with an aluminum polyester tape

Category 6 F/UTP Electrical Characteristics:

  • Characteristic impedance: 100 ± 15Ω (1.0 to 250 MHz)
  • Maximum conductor resistance: 9.38 Ω/100m @ 20° C
  • Maximum resistance unbalanced: 5%
  • Maximuml Mutual Capacitance: 5.6nF/100 meters @ 1kHZ
  • Nominal velocity of propagation (NVP): CMR 69%; CMP 71%

Applications

  • 2.5/5GBASE-T Ethernet
  • 1000BASE-T Gigabit Ethernet
  • 100BASE-TX Fast Ethernet
  • 155/622/1000 Mbps ATM
  • Broadband Video
  • Analog Voice/VoIP
  • Supports all IEEE standards for DC power delivery over 4-pair cabling when installed in accordance with TIA Telecommunications Systems Bulletin TSB-184-A, Guidelines for Supporting Power Delivery Over Balanced Twisted-Pair Cabling
  • All other applications developed for operation over Category 6 cabling

Features

  • Offers guaranteed headroom to TIA-568-C.2 Category 6 cable requirements
  • Components are twisted into pairs with varying left-hand lays to minimize cross-talk
  • Compatible with OCC Cat6 shielded jacks and patch panels for optimal system performance
  • Available in riser and plenum rated

Specifications

Download Drawing
Part Number Description UOM OD Weight PDF DWG/ZIP
OCC-FTP64PLM-XX Category 6 F/UTP CMP Cable Reel 0.277" 38lbs./1000 ft. Download Download
OCC-FTP64R-XX Category 6 F/UTP CMR Cable Reel 0.288" 34lbs./1000 ft. Download Download

Instruction Sheets

Talk to a knowledgeable OCC Expert that can find or customize a product to fit your specifications. 800-622-7711
