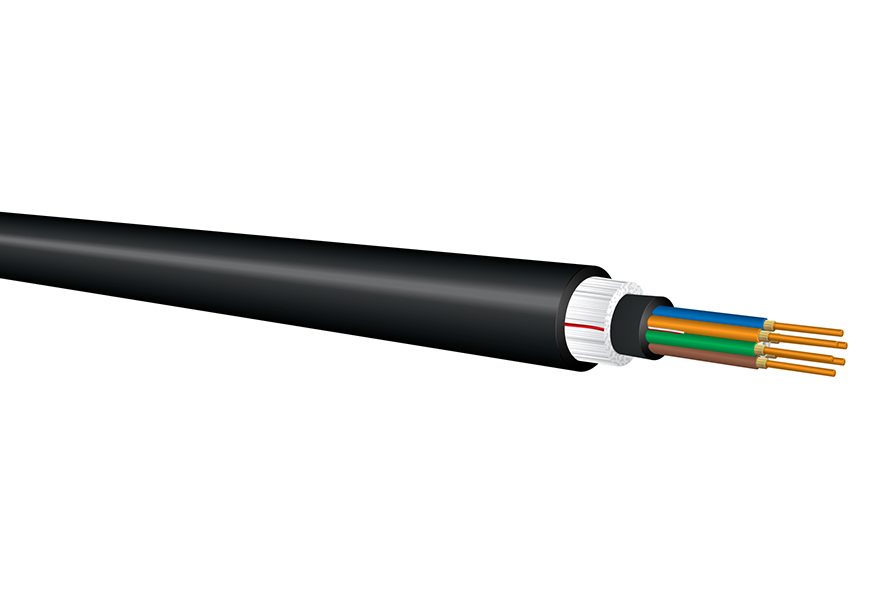

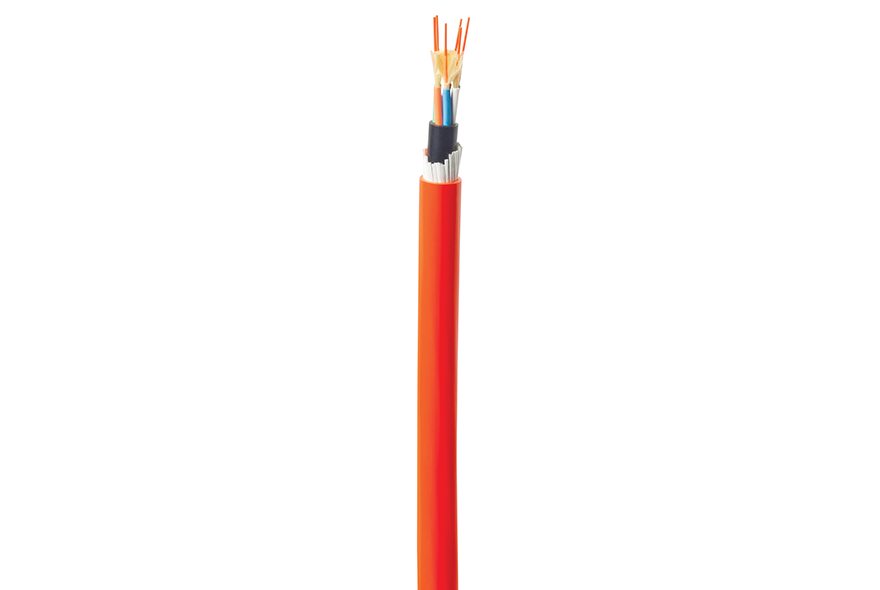

B-Series Breakout – Rodent Deterrent (FRP) Riser Rated Cables
Installation zone RECOMMENDATION1
1
1
1
- Used in area that require a riser rating and are susceptible to damage from small non-burrowing rodents
- Easiest cable to install where direct termination of the subcable to a connector and a direct run to panels and equipment are desired
Applications
- Used in area that require a riser rating and are susceptible to damage from small non-burrowing rodents
- Easiest cable to install where direct termination of the subcable to a connector and a direct run to panels and equipment are desired
Features
- Includes a layer of fiberglass yarn that provides an effective deterrent to damaged caused by small non-burrowing rodents (not recommended for direct burial applications)
- FRP is ideal for use in surface installations
- IL listed in accordance with NEC section 770.179(b) for use in vertical runs in building risers for from floor to floor

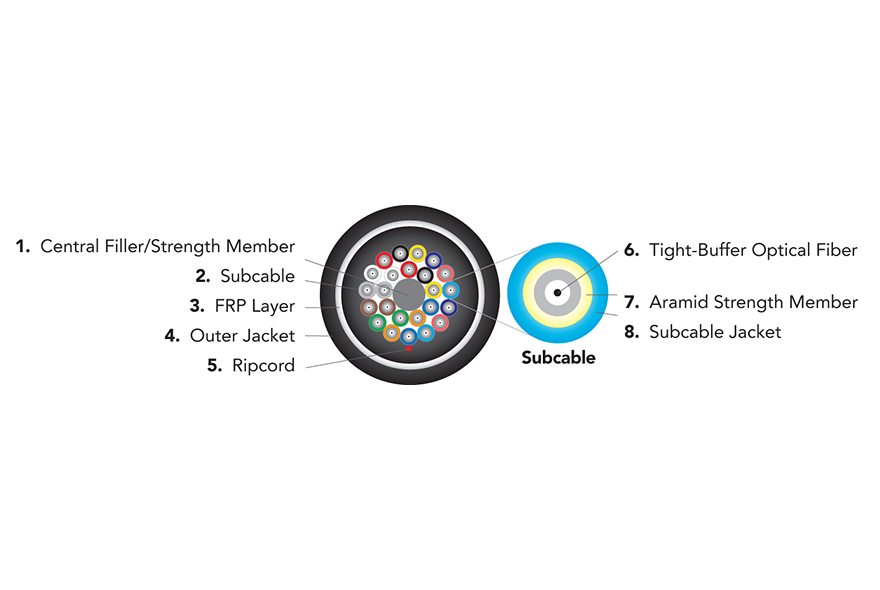

- Helically stranded cable core for flexibility, survival in difficult pulls, and excellent mechanical protection for the optical fibers
- Cables are suitable for use with single, as well as multichannel connectors
- Water, fungus and UV resistant for extreme environments
Characteristics
| Characteristic | FRP (with 2.5mm subcables) |
|---|---|
| Operating Temp | -40°C to +85°C |
| Storage Temp | -55°C to +85°C |
| Install Temp | -10°C to +60°C |
| Flame Retardancy | UL listed type OFNR (UL 1666) and FT4 (CSA C22.2 No. 232) |
| Crush Resist | 2200 N/cm |
| Impact Resist | 1500 impacts |
| Flex Resist | 2000 cycles |
| Jacket Type | D |
Standards
Optical Cable Corporation's Indoor/Outdoor tight-buffered fiber optic cables meet the functional requirements of the following standards:
- UL 1666
- UL 1651
- GR-409-CORE
- ICEA-S-104-696
- ICEA-S-83-596
- TIA-568
- TIA-598
Specifications
FRP Riser with 2.5mm subcables
| Tensile Load | Minimum Bend Radius | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Fiber Count | Part Number | Part Number Configurator | Diameter mm (in) |
Weight kg/km (lbs/1,000ft) |
Installation N (lbs) |
Operation N (lbs) |
Installation cm (in) |
Longer Term cm (in) |
|
| 2 | BX002D***9KRF1 |
12.5 (0.49) |
149.0 (100.0) |
2,000 (450) |
800 (180) |
18.8 (7.4) |
12.5 (4.9) |
||
| 4 | BX004D***9KRF1 |
12.5 (0.49) |
148.0 (99.0) |
2,000 (450) |
800 (180) |
18.8 (7.4) |
12.5 (4.9) |
||
| 6 | BX006D***9KRF1 |
13.6 (0.54) |
172.0 (116.0) |
3,000 (670) |
1,200 (270) |
20.4 (8.0) |
13.6 (5.4) |
||
| 8 | BX008D***9KRF1 |
15.8 (0.62) |
235.0 (158.0) |
4,000 (900) |
1,700 (380) |
23.7 (9.3) |
15.8 (6.2) |
||
| 12 | BX012D***9KRF1 |
18.0 (0.71) |
280.0 (188.0) |
6,000 (1,350) |
2,500 (560) |
27.0 (10.6) |
18.0 (7.1) |
||
| 18 | BX018D***9KRF1 |
19.2 (0.76) |
331.0 (222.0) |
8,000 (1,800) |
3,500 (790) |
28.8 (11.3) |
19.2 (7.6) |
||
| 24 | BX024D***9KRF1 |
21.8 (0.86) |
431.0 (290.0) |
10,000 (2,250) |
3,800 (850) |
32.7 (12.9) |
12.9 (5.1) |
||
| 36 | BX036D***9KRF1 |
25.0 (0.98) |
538.0 (362.0) |
14,000 (3,150) |
6,000 (1,350) |
37.5 (14.8) |
25.0 (9.8) |
||
| 48 | BX048D***9KRF1 |
28.2 (1.11) |
676.0 (454.0) |
18,000 (4,050) |
7,500 (1,690) |
42.3 (16.7) |
28.2 (11.1) |
||
Instruction Sheets
Related Documents
- Fiber Optic Tray Cable Brochure
- Industrial Solutions Quick Reference Product Guide
- Laser Ultra-Fox Fiber Performance Chart
- Military Solutions
Please Login Here to access additional documents.
