B-Series Breakout – MSHA-Rated Mining Cables
Installation zone RECOMMENDATION1
1
1
1
- Can be installed in locations that require compliance with MSHA’s Part 7, Subpart K of Title 30 of the Code of Federal Regulations (CFR) signal cables
- Suitable for permanent installations
- Ideal for applications that require individual connectors added to subcables
Features

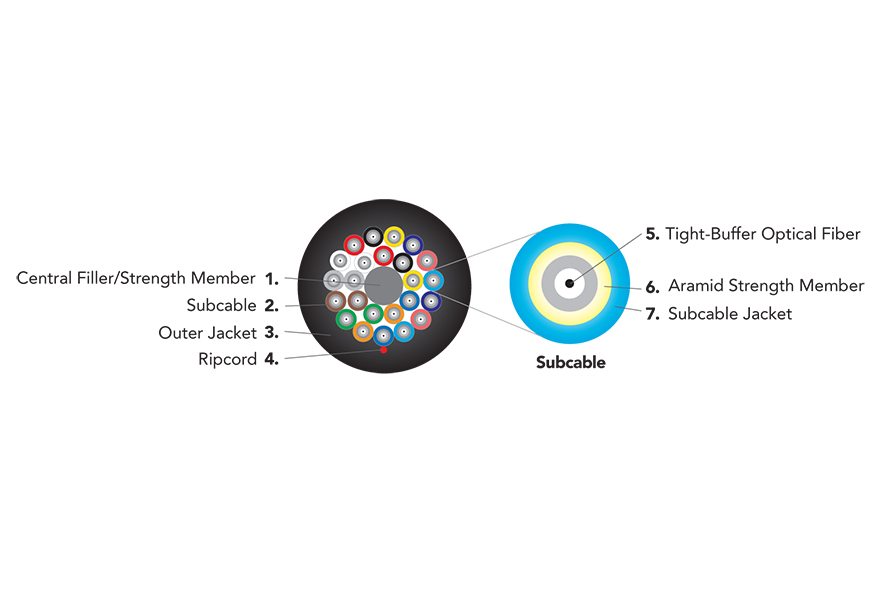

- Most rugged cable design with individual subcables for routing and direct connector termination
- Helically stranded cable core for flexibility, survival in difficult pulls, and mechanical protection for the optical fibers
- High performance tight-buffered coating on each optical fiber for environmental and mechanical protection
- Fibers may be directly terminated using connectors, with no further protection required
- UV resistant, water and fungus resistant
- Core-Locked® outer jacket surrounds the subcables for exceptional crush resistance, survivability, and use in long, vertical installations
- Designed for direct lashing, "J" hook applications, and vertical installations
- Cable is ideal for direct pulling with wire mesh grips
- Individual fibers and strength members protected in a subcable configuration
- Ideal configuration for multiple termination point locations where subcables provide excellent strength and mechanical protection for connector termination
- Flame retardant - MSHA approved to Part 7, Subpart K of Title 30 Code of Federal Regulations (CFR)
Characteristics
| Characteristic | Breakout Mining Cables |
|---|---|
| Operating Temp | -40°C to +85°C |
| Storage Temp | -55°C to +85°C |
| Install Temp | -10°C to +60°C |
| Flame Retardancy | MSHA- approved 30CFR 7.408 Signal Cable |
| Crush Resist | 2200 N/cm |
| Impact Resist | 1500 impacts |
| Flex Resist | 2000 cycles |
| Jacket Type | D |
Standards
OCC's B-Series MSHA-rated cables meet the functional requirements of the following standards:
- MSHA Approved 30CFR 7.408 Signal Cables
- Part 7, Subpart K of Title 30 Code of Federal Regulations (CFR)
- GR-409-CORE
- ICEA-S-104-696
- ICEA-S-83-596
- TIA-568
- TIA-598
Specifications
Breakout Mining Cables 2.5 mm
| Tensile Load | Minimum Bend Radius | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Fiber Count | Part Number | Part Number Configurator | Diameter mm (in) |
Weight kg/km (lbs/1,000ft) |
Installation N (lbs) |
Operation N (lbs) |
Installation cm (in) |
Longer Term cm (in) |
|
| 2 | BX002D***9*S |
7.0 (0.28) |
41.0 (28.0) |
1,200 (270) |
500 (110) |
10.5 (4.1) |
7.0 (2.8) |
||
| 4 | BX004D***9*S |
8.3 (0.33) |
65.0 (44.0) |
2,000 (450) |
800 (180) |
12.5 (4.9) |
8.3 (3.3) |
||
| 6 | BX006D***9*S |
9.6 (0.38) |
84.0 (56.0) |
3,000 (670) |
1,200 (270) |
14.4 (5.7) |
9.6 (3.8) |
||
| 8 | BX008D***9*S |
11.6 (0.46) |
126.0 (85.0) |
4,000 (900) |
1,700 (380) |
17.5 (6.9) |
11.6 (4.6) |
||
| 12 | BX012D***9*S |
14.1 (0.56) |
159.0 (107.0) |
6,000 (1,350) |
2,500 (560) |
21.2 (8.3) |
14.1 (5.6) |
||
| 18 | BX018D***9*S |
15.3 (0.60) |
216.0 (145.0) |
8,000 (1,800) |
3,500 (790) |
23.1 (9.1) |
15.3 (6.0) |
||
| 24 | BX024D***9*S |
17.6 (0.69) |
279.0 (188.0) |
10,000 (2,250) |
3,800 (850) |
26.5 (10.4) |
17.6 (6.9) |
||
| 36 | BX036D***9*S |
20.9 (0.82) |
360.0 (242.0) |
14,000 (3,150) |
6,000 (1,350) |
31.4 (12.4) |
20.9 (8.2) |
||
| 48 | BX048D***9*S |
24.2 (0.95) |
483.0 (325.0) |
18,000 (4,050) |
7,500 (1,690) |
36.3 (14.3) |
24.2 (9.5) |
||
