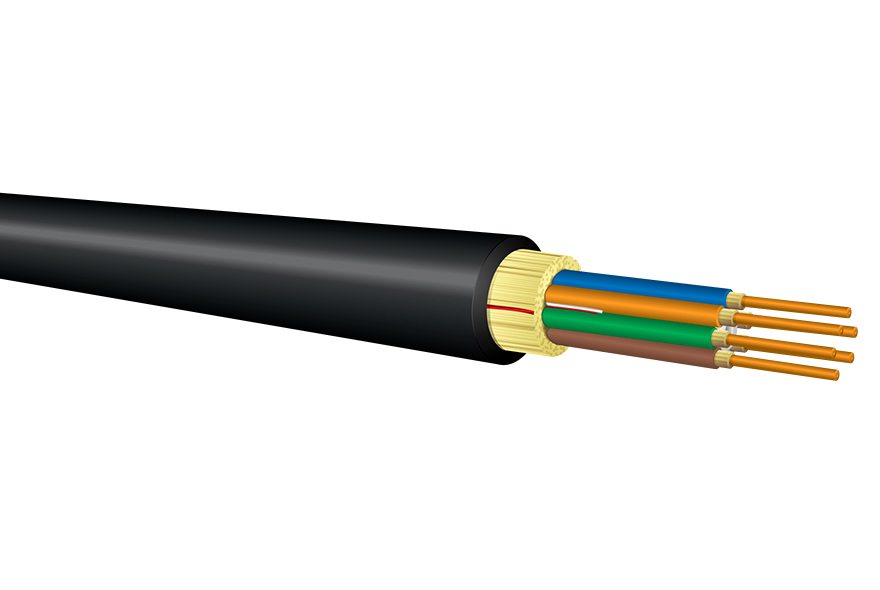

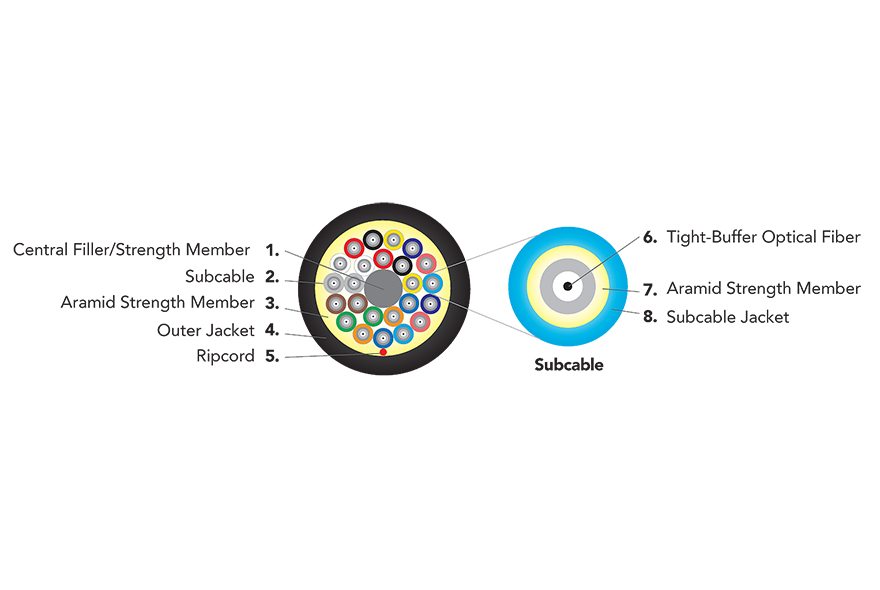

B-Series Breakout – LSZH OFNR-ST1 and IEC Rated Cables

Installation zone RECOMMENDATION
1
1
1
1
  • Low-smoke and zero-halogen cable suitable for indoor and outdoor applications requiring an extremely rugged cable where maximum mechanical and environmental protection are necessary
  • Easiest cable to install where direct termination of the subcable to a connector and a direct run to panels and equipment are desired

Applications

  • Fiber Optic tray Cable: Suitable for use in cable trays
  • Low-smoke and zero-halogen cable suitable for indoor and outdoor applications requiring an extremely rugged cable where maximum mechanical and environmental protection are necessary
  • Easiest cable to install where direct termination of the subcable to a connector and a direct run to panels and equipment are desired

Features

  • Zero-halogen construction meets IEC 60754-2
  • Meets low-smoke requirements of IEC 61034-2 and UL 1685 OFNR-ST1
  • Flame-retardant to the requirements of IEC 60332-3-24 and UL 1666 OFNR
  • Suitable for indoor or outdoor applications
  • Jacket is UV, fungus and moisture resistant
  • Round cable construction for easy handling and termination
  • Breakout style cable with 2 to 24 fibers
  • 2.0mm and 2.5mm subcables (2.9mm also available as special order)
  • Suitable for Indoor/Outdoor confined spaces including:
    • Building risers
    • Cable trays
    • Central offices
    • Mass-transit rail systems
    • Nuclear plants
    • Underground subway stations and tunnels

Characteristics

Characteristic 2.5mm subcables 2.0mm subcables
Operating Temp -40°C to +70°C -40°C to +70°C
Storage Temp -40°C to +70°C -40°C to +70°C
Install Temp -20°C to +60°C -20°C to +60°C
Flame Retardancy UL listed type OFNR-ST1 (UL 1666 & UL 1685), FT4 (CSA C22.2 No. 232) and IEC 60332-3-24, IEC 60754-2, IEC 61034-2 UL listed type OFNR-ST1 (UL 1666 & UL 1685), FT4 (CSA C22.2 No. 232) and IEC 60332-3-24, IEC 60754-2, IEC 61034-2
Crush Resist 2200 N/cm 2200 N/cm
Impact Resist 1500 impacts 1500 impacts
Flex Resist 2000 cycles 2000 cycles
Jacket Type Z Z

Standards

OCC Indoor/Outdoor tight-buffered LSZH fiber optic cables meet the functional requirements of the following standards:

  • UL 1651
  • UL 1666
  • UL 1685
  • IEC 60332-3-24
  • IEC 61034-2
  • IEC 60754-2
  • TIA-598

Specifications

With 2.5mm subcables

Tensile Load Minimum Bend Radius
Fiber Count Part Number Part Number Configurator Diameter mm
(in)		 Weight kg/km
(lbs/1,000ft)		 Installation N
(lbs)		 Operation N
(lbs)		 Installation cm
(in)		 Longer Term cm
(in)
2 BX002Z***9KE 9.2
(0.36) 		59.0
(40.0) 		2,000
(450) 		800
(180) 		13.8
(5.4) 		9.2
(3.6)
4 BX004Z***9KE 9.2
(0.36) 		84.0
(56.0) 		2,000
(450) 		800
(180) 		13.8
(5.4) 		9.2
(3.6)
6 BX006Z***9KE 10.6
(0.42) 		107.0
(72.0) 		3,000
(670) 		1,200
(270) 		15.9
(6.3) 		10.6
(4.2)
8 BX008Z***9KE 12.4
(0.49) 		144.0
(97.0) 		4,000
(900) 		1,700
(380) 		18.6
(7.3) 		12.4
(4.9)
12 BX012Z***9KE 14.2
(0.56) 		171.0
(115.0) 		6,000
(1,350) 		2,500
(560) 		21.3
(8.4) 		14.2
(5.6)
18 BX018Z***9KE 15.9
(0.63) 		225.0
(151.0) 		8,000
(1,800) 		3,500
(790) 		23.9
(9.4) 		15.9
(6.3)
24 BX024Z***9KE 17.9
(0.70) 		290.0
(195.0) 		10,000
(2,250) 		3,800
(850) 		26.9
(10.6) 		17.9
(7.0)

With 2.0mm subcables

Tensile Load Minimum Bend Radius
Fiber Count Part Number Part Number Configurator Diameter mm
(in)		 Weight kg/km
(lbs/1,000ft)		 Installation N
(lbs)		 Operation N
(lbs)		 Installation cm
(in)		 Longer Term cm
(in)
2 BE002Z***9KE 8.0
(0.31) 		66.0
(44.0) 		1,600
(360) 		400
(90) 		12.0
(4.7) 		8.0
(3.1)
4 BE004Z***9KE 8.0
(0.31) 		66.0
(44.0) 		1,600
(360) 		400
(90) 		12.0
(4.7) 		8.0
(3.1)
6 BE006Z***9KE 9.1
(0.36) 		82.0
(55.0) 		2,400
(540) 		600
(130) 		13.7
(5.4) 		9.1
(3.6)
8 BE008Z***9KE 10.4
(0.41) 		108.0
(73.0) 		3,200
(720) 		800
(180) 		15.6
(6.1) 		10.4
(4.1)
12 BE012Z***9KE 11.6
(0.46) 		131.0
(88.0) 		4,800
(1,800) 		1,200
(270) 		17.4
(6.9) 		11.6
(4.6)
18 BE018Z***9KE 12.8
(0.50) 		162.0
(109.0) 		7,200
(1,620) 		1,800
(400) 		19.2
(7.6) 		12.8
(5.0)
24 BE024Z***9KE 14.7
(0.58) 		219.0
(147.0) 		9,600
(2,100) 		2,400
(540) 		22.1
(8.7) 		14.7
(5.8)
