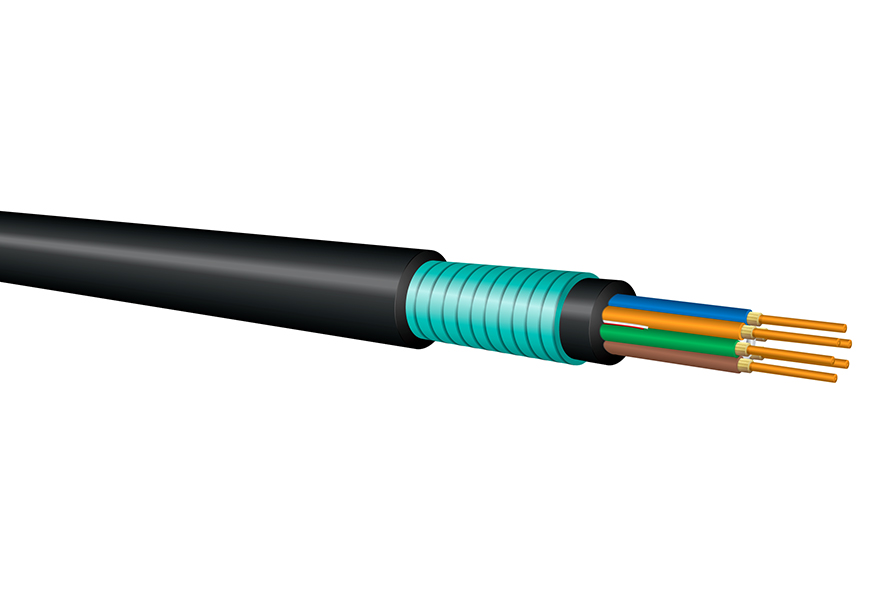

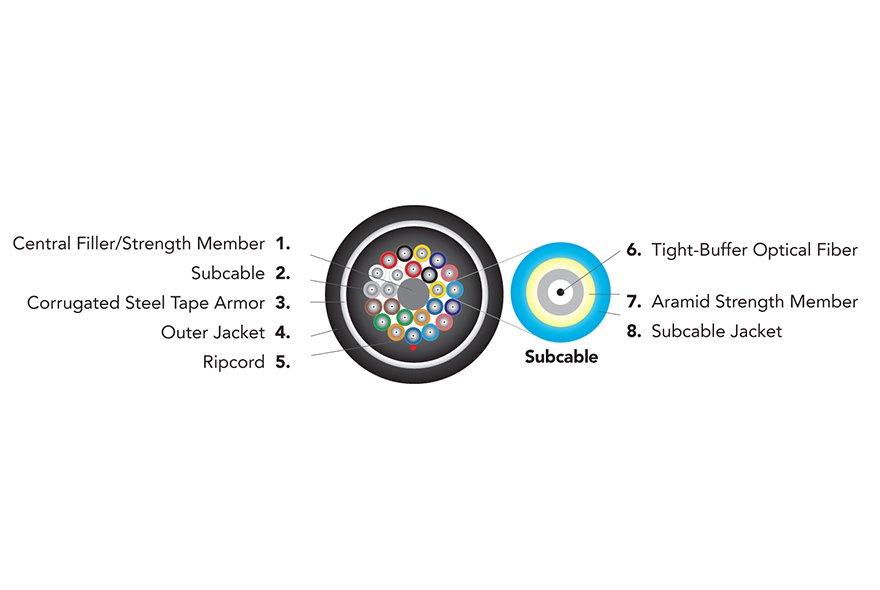

B-Series Breakout – Corrugated Steel Tape (CST) Armored Cables

Installation zone RECOMMENDATION
1
1
1
1
  • Ideal for installations where direct burial or rodent protection is required
  • Ideal for installations requiring an extremely rugged and reliable cable design where maximum mechanical and environmental protection are necessary
  • Easiest cable to install where direct termination of connectors to subunits and direct run to panels and equipment are desired

Applications

  • Ideal for installations where direct burial or rodent protection is required
  • Ideal for installations requiring an extremely rugged and reliable cable design where maximum mechanical and environmental protection are necessary
  • Easiest cable to install where direct termination of connectors to subunits and direct run to panels and equipment are desired

Features

  • Inner cable is a fully functional B-Series Breakout riser-rated cable
  • High-performance components and construction
  • Most rugged and easy to install cable design for enterprise cabling applications
  • 2.5mm subcables and 2.0mm subcables can be direct-terminated with standard connectors (2.9mm subcables available as special order)
  • The steel-armor is easily removed with an internal ripcord, leaving a fully functional intact riser-rated inner cable with original cable marking for identification
  • Polyethylene (A) outer jacket for excellent UV and weathering resistance
  • Subcabled fiber is environmentally and mechanically protected
  • Ideal for use in point-to-point runs in adverse environments
  • Direct termination to subcable provides additional strain-relief for better connector retention during moves, adds and changes
  • Cable materials are Indoor/Outdoor- UV, water and fungus resistant
  • Wide operating temperature range of -40°C to + 85°C
  • High-performance 900µm tight-buffered coating on each optical fiber for environmental and mechanical protection
  • 2 to 36 fibers

Characteristics

Characteristic 2.0mm subcables 2.5mm subcables
Operating Temp -40°C to +85°C -40°C to +85°C
Storage Temp -55°C to +85&C -55°C to +85&C
Install Temp -10°C to +60°C -10°C to +60°C
Crush Resist 440 N/cm 440 N/cm
Impact Resist 20 impacts 20 impacts
Flex Resist 25 cycles 25 cycles
Jacket Type D Inner, A Outer D Inner, A Outer

Specifications

2.0mm subcables

Tensile Load Minimum Bend Radius
Fiber Count Part Number Part Number Configurator Diameter mm
(in)		 Weight kg/km
(lbs/1,000ft)		 Installation N
(lbs)		 Operation N
(lbs)		 Installation cm
(in)		 Longer Term cm
(in)
2 BE002D***9KAA2 12.9
(0.51) 		152.0
(102.0) 		1,600
(360) 		400
(90) 		19.4
(7.6) 		12.9
(5.1)
4 BE004D***9KAA2 12.9
(0.51) 		152.0
(102.0) 		1,600
(360) 		400
(90) 		19.4
(7.6) 		12.9
(5.1)
6 BE006D***9KAA2 14.4
(0.57) 		182.0
(122.0) 		2,400
(540) 		600
(130) 		21.6
(8.5) 		14.4
(5.7)
8 BE008D***9KAA2 15.5
(0.61) 		211.0
(142.0) 		3,200
(720) 		800
(180) 		23.3
(9.2) 		15.5
(6.1)
12 BE012D***9KAA2 17.5
(0.69) 		249.0
(167.0) 		4,800
(1,080) 		1,200
(270) 		26.3
(10.4) 		17.5
(6.9)
18 BE018D***9KAA2 18.9
(0.74) 		301.0
(202.0) 		6,000
(1,350) 		1,500
(340) 		28.4
(11.2) 		18.9
(7.4)
24 BE024D***9KAA2 21.4
(0.84) 		391.0
(263.0) 		7,200
(1,600) 		1,800
(400) 		32.1
(12.6) 		21.4
(8.4)
36 BE036D***9KAA2 23.5
(0.93) 		455.0
(306.0) 		9,600
(2,100) 		2,400
(540) 		35.3
(13.9) 		23.5
(9.3)

2.5mm subcables

Tensile Load Minimum Bend Radius
Fiber Count Part Number Part Number Configurator Diameter mm
(in)		 Weight kg/km
(lbs/1,000ft)		 Installation N
(lbs)		 Operation N
(lbs)		 Installation cm
(in)		 Longer Term cm
(in)
2 BX002D***9KAA2 14.4
(0.57) 		183.0
(123.0) 		1,200
(270) 		500
(110) 		21.6
(8.5) 		14.4
(5.7)
4 BX004D***9KAA2 14.4
(0.57) 		183.0
(123.0) 		2,000
(450) 		800
(180) 		21.6
(8.5) 		14.4
(5.7)
6 BX006D***9KAA2 16.0
(0.63) 		211.0
(142.0) 		3,000
(670) 		1,200
(270) 		24.0
(9.4) 		16.0
(6.3)
8 BX008D***9KAA2 18.4
(0.72) 		275.0
(185.0) 		4,000
(900) 		1,700
(380) 		27.6
(10.9) 		18.4
(7.2)
12 BX012D***9KAA2 20.9
(0.82) 		330.0
(222.0) 		6,000
(1,350) 		2,500
(560) 		31.4
(12.4) 		20.9
(8.2)
18 BX018D***9KAA2 21.9
(0.86) 		330.0
(222.0) 		6,000
(1,350) 		2,500
(560) 		31.4
(12.4) 		20.9
(8.2)
24 BX024D***9KAA2 24.5
(0.96) 		478.0
(321.0) 		10,000
(2,250) 		3,800
(850) 		36.8
(14.5) 		24.5
(9.6)
36 BX036D***9KAAF 28.3
(1.11) 		607.0
(408.0) 		14,000
(3,150) 		6,000
(1,350) 		42.5
(16.7) 		28.3
(11.1)
